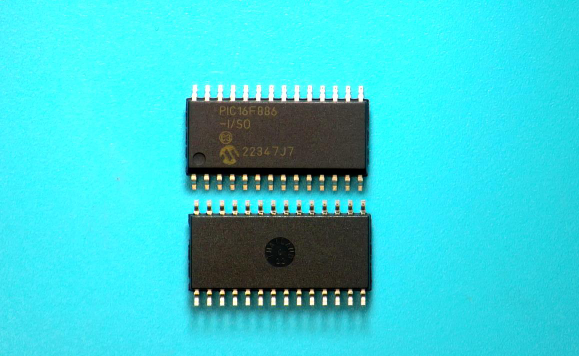

PIC16F886-I/SO Microchip Technology IC MCU 8BIT 14KB FLASH 28SOIC

label:

2024/01/10 186

·24/35 I/O Pins with Individual Direction Control:

- High current source/sink for direct LED drive

- Interrupt-on-Change pin

- Individually programmable weak pull-ups

- Ultra Low-Power Wake-up(ULPWU)

·Analog Comparator Module with: -Two analog comparators

- Programmable on-chip voltage reference (CVREF) module(% of VDD)

- Fixed Voltage Reference(0.

- Comparator inputs and outputs externally accessible

- SR Latch mode

- External Timer1 Gate (count enable)

·A/D Converter:

- 10-bit resolution and 11/14 channels

·Timer0: 8-bit Timer/Counter with 8-bit Programmable Prescaler

·Enhanced Timer1:

- 16-bit timer/counter with prescaler -External Gate Input mode

- Dedicated low-power 32 kHz oscillator

· Timer2: 8-bit Timer/Counter with 8-bit Period Register,Prescaler and Postscaler

· Enhanced Capture,Compare, PWM+ Module:

- 16-bit Capture, max. resolution 12.5 ns

- Compare,max.resolution 200 ns

- 10-bit PWM with 1,2 or 4 output channels, programmable "dead time",max.frequency 20kHz

- PWM output steering control

·Capture,Compare,PWM Module:

- 16-bit Capture, max. resolution 12.5 ns

- 16-bit Compare, max. resolution 200 ns

- 10-bit PWM, max.frequency 20 kHz

· Enhanced USART Module:

- Supports RS-485, RS-232, and LIN 2.0

- Auto-Baud Detect

- Auto-Wake-Up on Start bit

·In-Circuit Serial ProgrammingTM (ICSPTM) via Two Pins

·Master Synchronous Serial Port (MSSP) Module supporting 3-wire SPI (all 4 modes) and I2C TM Master and Slave Modes with PC Address Mask

CATALOG

PIC16F886-I/SO COUNTRY OF ORIGIN

PIC16F886-I/SO PARAMETRIC INFO

PIC16F886-I/SO PACKAGE INFO

PIC16F886-I/SO MANUFACTURING INFO

PIC16F886-I/SO PACKAGING INFO

PIC16F886-I/SO ECAD MODELS

PIC16F886-I/SO FUNCTIONAL BLOCK DIAGRAM

COUNTRY OF ORIGIN

Philippines

Taiwan (Province of China)

China

Thailand

PARAMETRIC INFO

Data Bus Width (bit)	8
Family Name	PIC16
Device Core	PIC
Instruction Set Architecture	RISC
Maximum Clock Rate (MHz)	20
Program Memory Type	Flash
Program Memory Size	14KB
RAM Size	368B
Maximum Expanded Memory Size	3.5KB
Maximum CPU Frequency (MHz)	20
EEPROM	256B
Direct Memory Access	No
Floating Point Unit	No
Bluetooth	No
Wi-Fi	No
Multiply Accumulate	No
Internal/External Clock Type	Internal/External
Touch Sensing Interface	No
Power On Reset	No
Memory Protection Unit	No
Temperature Sensor	Yes
DDR	No
Memory Management Unit	No
Integrated Development Environment	No
Super Scalar	No
External Bus Interface	No
Number of Programmable I/Os	24
Number of Timers	3
ADC Channels	11
ADC Resolution (bit)	10
Number of ADCs	Single
Core Architecture	PIC
PWM	1
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Interface Type	I2C/SPI/USART
Timers Resolution (bit)	8/8/16
Programmability	Yes
SPI	1
I2C	1
I2S	0
Process Technology	CMOS
UART	0
USART	1
CAN	0
USB	0
Ethernet	0
Maximum Power Dissipation (mW)	800
Minimum Operating Supply Voltage (V)	2
Typical Operating Supply Voltage (V)	2.5\|3.3\|5
Maximum Operating Supply Voltage (V)	5.5
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Temperature Flag	Opr
Supplier Temperature Grade	Industrial
Operating Supply Voltage (V)	2.5\|3.3\|5
Maximum Storage Temperature (°C)	150
Minimum Storage Temperature (°C)	-65

PACKAGE INFO

Supplier Package	SOIC W
Basic Package Type	Lead-Frame SMT
Pin Count	28
Lead Shape	Gull-wing
PCB	28
Tab	N/R
Package Length (mm)	17.9
Package Width (mm)	7.5
Package Height (mm)	2.05(Min)
Package Diameter (mm)	N/R
Mounting	Surface Mount
Package Description	Small Outline IC Wide Body
Package Family Name	SO
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1\|3
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	20 to 40
Number of Reflow Cycle	3
Standard	J-STD-020C
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	Cu Alloy

PACKAGING INFO

Packaging	Tube
Packaging Document	Link to Datasheet

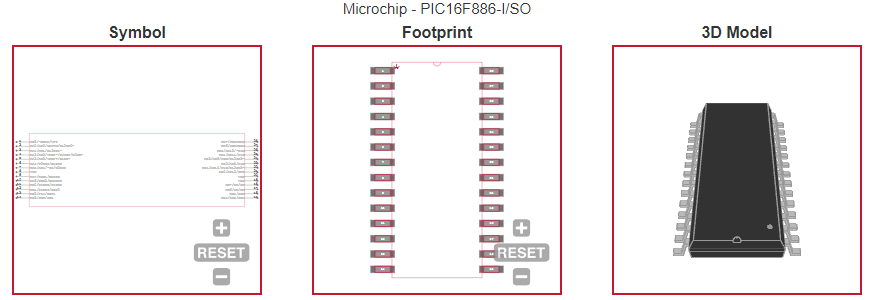

ECAD MODELS

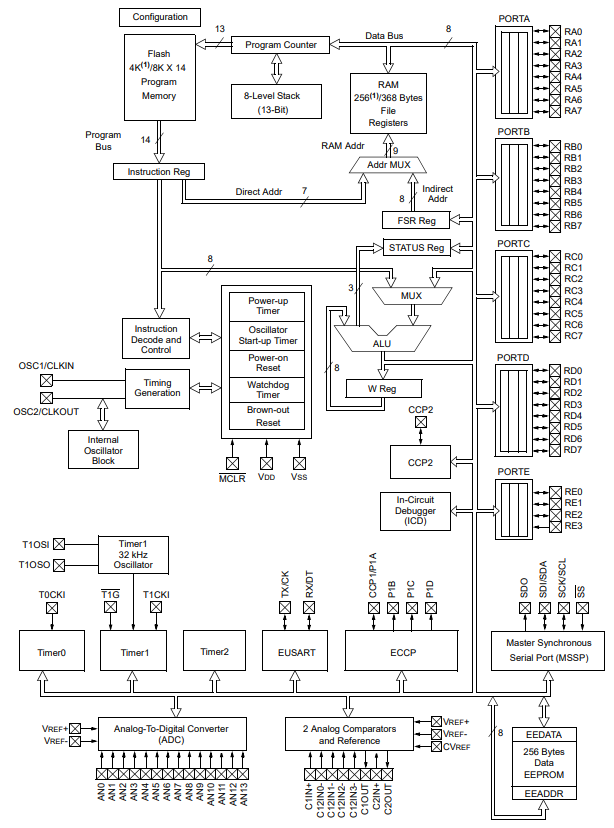

FUNCTIONAL BLOCK DIAGRAM
