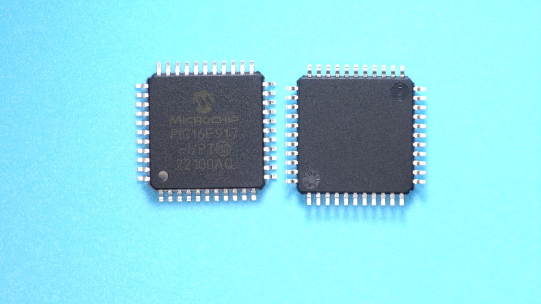

PIC16F917-I/PT Microchip Technology IC MCU 8BIT 14KB FLASH 44TQFP

label:

2024/03/6 218

• Precision Internal Oscillator:
- Factory calibrated to ±1%, typical
- Software selectable frequency range of8 MHz to 125 kHz
- Software tunable
- Two-Speed Start-up mode
- External Oscillator fail detect for criticalapplications
- Clock mode switching during operation forpower savings

• Software selectable 31 kHz internal oscillator

• Power-Saving Sleep mode

• Wide operating voltage range (2.0V-5.5V)

• Industrial and Extended temperature range

• Power-on Reset (POR)

• Power-up Timer (PWRT) and Oscillator Start-upTimer (OST)

• Brown-out Reset (BOR) with software controloption

• Enhanced Low-Current Watchdog Timer (WDT)with on-chip oscillator (software selectablenominal 268 seconds with full prescaler) withsoftware enable

• Multiplexed Master Clear with pull-up/input pin

• Programmable code protection

• High-Endurance Flash/EEPROM cell:
- 100,000 write Flash endurance
- 1,000,000 write EEPROM endurance
- Flash/Data EEPROM retention: > 40 years

CATALOG

PIC16F917-I/PT Country of Origin

PIC16F917-I/PT Parametric Info

PIC16F917-I/PT Package Info

PIC16F917-I/PT Manufacturing Info

PIC16F917-I/PT Packaging Info

PIC16F917-I/PT ECAD Models

COUNTRY OF ORIGIN

Korea (Republic of)

Taiwan (Province of China)

Thailand

China

Philippines

PARAMETRIC INFO

Data Bus Width (bit)	8
Family Name	PIC16
Device Core	PIC
Instruction Set Architecture	RISC
Maximum Clock Rate (MHz)	20
Program Memory Type	Flash
Program Memory Size	14KB
RAM Size	352B
Maximum CPU Frequency (MHz)	20
Number of Programmable I/Os	35
Number of Timers	3
ADC Channels	8
ADC Resolution (bit)	10
Number of ADCs	Single
Core Architecture	PIC
PWM	2
Watchdog	1
LCD Segments	24
Analog Comparators	2
Special Features	LCD Controller
Interface Type	I2C/SPI/USART
Programmability	Yes
SPI	1
I2C	1
I2S	0
UART	0
USART	1
CAN	0
USB	0
Ethernet	0
Maximum Power Dissipation (mW)	800
Minimum Operating Supply Voltage (V)	4.5
Typical Operating Supply Voltage (V)	5
Maximum Operating Supply Voltage (V)	5.5
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Temperature Flag	Opr
Supplier Temperature Grade	Industrial
Operating Supply Voltage (V)	5
Maximum Storage Temperature (°C)	150
Minimum Storage Temperature (°C)	-65

PACKAGE INFO

Supplier Package	TQFP
Basic Package Type	Lead-Frame SMT
Pin Count	44
Lead Shape	Gull-wing
PCB	44
Tab	N/R
Package Length (mm)	10
Package Width (mm)	10
Package Height (mm)	1
Package Diameter (mm)	N/R
Mounting	Surface Mount
Package Material	Plastic
Package Description	Thin Quad Flat Package
Package Family Name	QFP
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	20 to 40
Number of Reflow Cycle	3
Standard	J-STD-020C
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	C7025
Number of Wave Cycles	N/R

PACKAGING INFO

Packaging	Tray
Quantity Of Packaging	160
