• ADC Module:
- 10-bit 1 Msps rate with one Sample and Hold (S&H)
- Up to 48 analog inputs
- Can operate during Sleep mode |
| • Flexible and independent ADC trigger sources |
| • On-chip temperature measurement capability |
• Comparators:
- Three dual-input Comparator modules
- Programmable reference with 32 voltage points
|
|
| CATALOG |

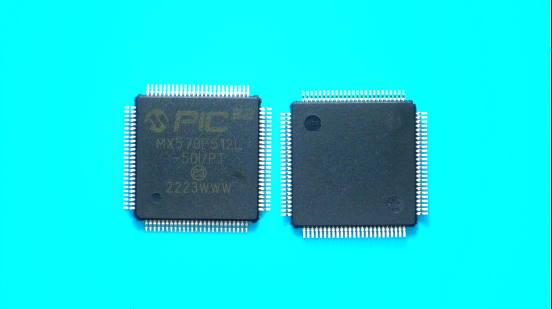

| PIC32MX570F512L-50I/PT PARAMETRIC INFO |
| PIC32MX570F512L-50I/PT PACKAGE INFO |
| PIC32MX570F512L-50I/PT MANUFACTURING INFO |
| PIC32MX570F512L-50I/PT PACKAGING INFO |
|
| PARAMETRIC INFO |
| Data Bus Width (bit) |
32 |
| Family Name |
PIC32 |
| Device Core |
MIPS32 M4K |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
50 |
| Program Memory Type |
Flash |
| Program Memory Size |
512KB |
| RAM Size |
64KB |
| Maximum Expanded Memory Size |
4GB |
| DMA Channels |
8 |
| Direct Memory Access |
Yes |
| Floating Point Unit |
No |
| Bluetooth |
No |
| Wi-Fi |
No |
| Multiply Accumulate |
No |
| Internal/External Clock Type |
External |
| Touch Sensing Interface |
No |
| Power On Reset |
No |
| Memory Protection Unit |
No |
| Temperature Sensor |
Yes |
| DDR |
No |
| Memory Management Unit |
No |
| Integrated Development Environment |
No |
| Super Scalar |
No |
| External Bus Interface |
No |
| Maximum CPU Frequency (MHz) |
50 |
| Number of Programmable I/Os |
81 |
| Number of Timers |
5 |
| ADC Channels |
48 |
| ADC Resolution (bit) |
10 |
| Core Architecture |
PIC |
| Number of ADCs |
Single |
| PWM |
1 |
| Watchdog |
1 |
| Analog Comparators |
3 |
| Parallel Master Port |
No |
| Real Time Clock |
Yes |
| Special Features |
LCD Controller |
| Timers Resolution (bit) |
16/16/16/16/16 |
| Interface Type |
CAN/I2C/SPI/UART/USB |
| Programmability |
Yes |
| SPI |
4 |
| I2C |
2 |
| I2S |
0 |
| UART |
5 |
| USART |
0 |
| CAN |
1 |
| USB |
1 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
2.3 |
| Typical Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
| PACKAGE INFO |
| Supplier Package |
TQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
100 |
| Lead Shape |
Gull-wing |
| PCB |
100 |
| Tab |
N/R |
| Package Length (mm) |
12 |
| Package Width (mm) |
12 |
| Package Height (mm) |
1 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Thin Quad Flat Package |
| Package Family Name |
QFP |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
1|3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
| PACKAGING INFO |
| Packaging |
Tray |
| Packaging Document |
Link to Datasheet |
|
