| ．Small, thin and lightweight |
| ．High sound pressure level and clear sound |
| ．Reflowable |
| ．Tape & Reel supply |
|
| CATALOG |
| PKLCS1212E2000-R1 COUNTRY OF ORIGIN |
| PKLCS1212E2000-R1 PARAMETRIC INFO |
| PKLCS1212E2000-R1 PACKAGE INFO |
| PKLCS1212E2000-R1 MANUFACTURING INFO |
| PKLCS1212E2000-R1 PACKAGING INFO |
| PKLCS1212E2000-R1 ECAD MODELS |
|
| COUNTRY OF ORIGIN |
| Japan |
| Malaysia |
|
| PARAMETRIC INFO |
| Typical Operating Supply Voltage |
1.5Vo-p |
| Maximum Operating Supply Voltage |
12.5Vo-p |
| Type |
Sounder |
| Technology |
Piezo |
| Minimum Sound Pressure (dBA) |
70dB |
| Termination Method |
Solder Pad |
| Tone Mode |
External Drive |
| Maximum Operating Temperature (°C) |
70 |
| Minimum Operating Temperature (°C) |
-20 |
|
| |
| PACKAGE INFO |
| Mounting |
Surface Mount |
| Number of Terminals |
2 |
| Product Length (mm) |
12 |
| Product Depth (mm) |
12 |
| Product Height (mm) |
3 |
| Product Diameter (mm) |
N/R |
|
| |
| MANUFACTURING INFO |
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
N/A |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
R1 |
| Packaging |
Tape and Reel |
|
| |

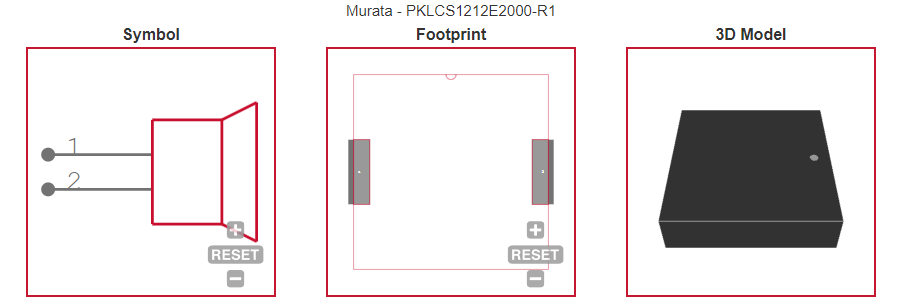

| ECAD MODELS |
 |
|
