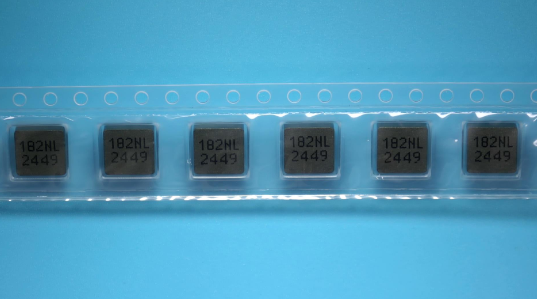

PM2204.182NLT Pulse Electronics FIXED IND 1.8UH 14A 10.2MOHM SMD

2025/08/5 71

CATALOG

China

Type	Power
Technology	Wirewound
Protection Style	Molded/Shielded
Inductance (H)	1.8u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	14
Typical Temperature Rise (°C)	40
Maximum Saturation Current (A)	13
Inductance Decrease Percentage @ Isat (%)	40
Maximum DC Resistance (Ohm)	0.0102
Maximum Operating Temperature (°C)	155
Minimum Operating Temperature (°C)	-55
Operating Temperature (°C)	-55 to 155
