• Low forward voltage
|
• Low Qrr and low IRM
|
• Low leakage current
|
• High power capability due to clip-bonding technology
|
• Power flat lead plastic package with exposed heatsink for optimal thermal connection
|
• Qualified according to AEC-Q101 and recommended for use in automotive applications
|
|
| CATALOG |
PMEG100T10ELXD-QX COUNTRY OF ORIGIN
|
PMEG100T10ELXD-QX PARAMETRIC INFO
|
PMEG100T10ELXD-QX PACKAGE INFO
|
PMEG100T10ELXD-QX MANUFACTURING INFO
|
PMEG100T10ELXD-QX PACKAGING INFO
|
PMEG100T10ELXD-QX APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Germany
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Schottky Diode |
| Configuration |
Single |
| Maximum DC Reverse Voltage (V) |
100 |
| Maximum Continuous Forward Current (A) |
1.4 |
| Maximum Power Dissipation (mW) |
1200 |
| Average Rectified Forward Current (A) |
1 |
| Peak Forward Voltage (V) |
0.795 |
| Peak Non-Repetitive Surge Current (A) |
27 |
| Peak Reverse Current (uA) |
0.5 |
| Peak Reverse Recovery Time (ns) |
6(Typ) |
| Operating Junction Temperature (°C) |
175 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
175 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
175 |
| Supplier Temperature Grade |
Automotive |
|
|
PACKAGE INFO
|
| Supplier Package |
CFP-HP |
| Pin Count |
2 |
| PCB |
2 |
| Tab |
N/R |
| Package Length (mm) |
2.2 |
| Package Width (mm) |
1.3 |
| Package Height (mm) |
N/A |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.68 |
| Mounting |
Surface Mount |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Lead Finish(Plating) |
Sn |
|
|

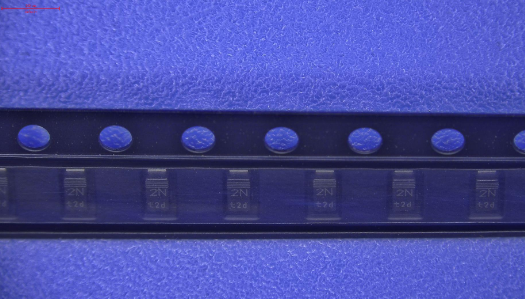

PACKAGING INFO
|
|
|
|
APPLICATIONS
|
• High efficiency DC-to-DC conversion
|
| • Automotive LED lighting |
| • Switch mode power supply |
| • Freewheeling applications |
| • Reverse polarity protection |
| • OR-ing |
| |
