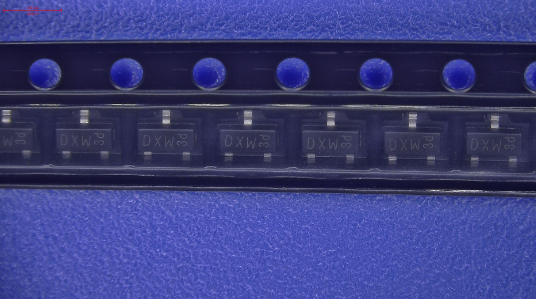

| Channel Type |
N |
| Channel Mode |
Enhancement |
| Configuration |
Single |
| Maximum Drain Source Voltage (V) |
60 |
| Maximum Absolute Continuous Drain Current (A) |
2.1 |
| Maximum Continuous Drain Current (A) |
2.1 |
| Maximum Gate Source Voltage (V) |
20 |
| Maximum Drain Source Resistance (mOhm) |
123@10V |
| Typical Gate Charge @ Vgs (nC) |
5.9@10V |
| Typical Gate Charge @ 10V (nC) |
5.9 |
| Maximum Power Dissipation (mW) |
1050 |
| Process Technology |
TMOS |
| Category |
Small Signal |
| Typical Input Capacitance @ Vds (pF) |
275@30V |
| Typical Turn-On Delay Time (ns) |
6.4 |
| Typical Turn-Off Delay Time (ns) |
15.9 |
| Typical Fall Time (ns) |
6.3 |
| Typical Rise Time (ns) |
8.9 |
| Maximum Gate Source Leakage Current (nA) |
10000 |
| Maximum Gate Threshold Voltage (V) |
2.7 |
| Maximum IDSS (uA) |
1 |
| Number of Elements per Chip |
1 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
| Supplier Temperature Grade |
Automotive |
