PSM712-LF-T7 UMW SOT23-3


• Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV
• Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns
• Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(LineGround) & Level 3 (Line-Line)
• 600 Watts Peak Pulse Power per Line(tp = 8/20µs)
• RoHS Compliant
• REACH Compliant


CATALOG
PSM712-LF-T7 COUNTRY OF ORIGIN
PSM712-LF-T7 PARAMETRIC INFO
PSM712-LF-T7 PACKAGE INFO
PSM712-LF-T7 MANUFACTURING INFO
PSM712-LF-T7 PACKAGING INFO
PSM712-LF-T7 ECAD MODELS


COUNTRY OF ORIGIN
China
Thailand
Taiwan (Province of China)
Philippines


PARAMETRIC INFO
Type TVS
Direction Type Bi-Directional
Maximum Working Voltage (V) 7|12
Configuration Dual
Capacitance Value (pF) 75(Typ)
Maximum Clamping Voltage (V) 17|30
Maximum Reverse Leakage Current (uA) 20|1
Number of Elements per Chip 2
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150


PACKAGE INFO
Supplier Package SOT-23
Basic Package Type Lead-Frame SMT
Pin Count 3
Lead Shape Gull-wing
PCB 3
Tab N/R
Pin Pitch (mm) 1.02(Max)
Package Length (mm) 3.04(Max)
Package Width (mm) 1.4(Max)
Package Height (mm) 1.11(Max)
Package Diameter (mm) N/R
Seated Plane Height (mm) 1.21(Max)
Mounting Surface Mount
Package Material Plastic
Package Description Small Outline Transistor
Package Family Name SOT
Jedec TO-236AB
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL N/A
Maximum Reflow Temperature (°C) 260 to 270
Reflow Solder Time (Sec) N/A
Number of Reflow Cycle N/A
Standard N/A
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Matte Sn annealed
Under Plating Material N/A
Terminal Base Material N/A
Number of Wave Cycles N/R

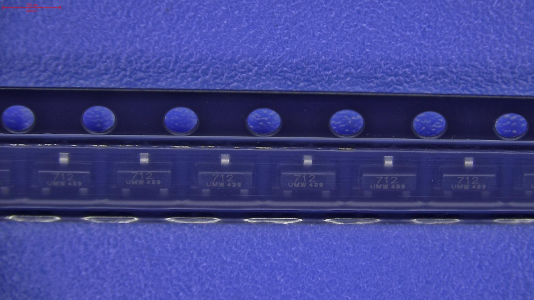

PACKAGING INFO
Packaging Suffix T7
Packaging Tape and Reel
Quantity Of Packaging 3000

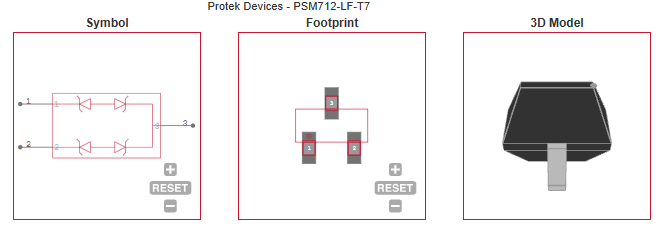

ECAD MODELS
