PSR400ITQFH1L00 COUNTRY OF ORIGIN
|
PSR400ITQFH1L00 PARAMETRIC INFO
|
PSR400ITQFH1L00 PACKAGE INFO
|
PSR400ITQFH1L00 MANUFACTURING INFO
|
PSR400ITQFH1L00 PACKAGING INFO
|
PSR400ITQFH1L00 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
Philippines
|
|
PARAMETRIC INFO
|
| Resistance Value (Ohm) |
1m |
| Temperature Coefficient (ppm/°C) |
0 to 75 |
| Power Rating (W) |
5 |
| Tolerance |
1% |
| Negative Resistance Tolerance (%) |
-1 |
| Positive Resistance Tolerance (%) |
1 |
| Technology |
Metal Plate |
| Package Shape |
Rectangular |
| Operating Temperature (°C) |
-65 to 175 |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
175 |
| Temperature Range @ Derated Power (°C) |
75 to 175 |
| Minimum Storage Temperature (°C) |
5 |
| Maximum Storage Temperature (°C) |
40 |
| Current Sensing |
Yes |
| Fail Safe Fusible Resistor |
No |
| Anti-Surge |
No |
| Anti-Sulfurated |
No |
|
|
PACKAGE INFO
|
| Case Size |
3921 |
| Package/Case |
3921 |
| Mounting |
Surface Mount |
| Package Type |
SMD |
| Termination Style |
Pad |
| Product Length (mm) |
10 |
| Product Depth (mm) |
5.2 |
| Product Height (mm) |
0.9 |
| Product Diameter (mm) |
N/R |
| Length Tolerance (mm) |
±0.3 |
| Depth Tolerance (mm) |
±0.3 |
| Height Tolerance (mm) |
±0.15 |
| Diameter Tolerance (mm) |
N/R |
| Maximum Product Length (mm) |
10.3 |
| Maximum Product Depth (mm) |
5.5 |
| Maximum Product Height (mm) |
1.05 |
| Terminal Pitch (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
265 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Ag |
|
|

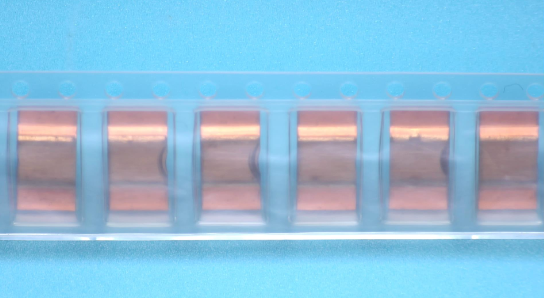

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|
ECAD MODELS
|
 |
|
