| ■ IEEE 802.3 Ethernet compatible |
| ■ Designed for AMD IC manufacturers |
| ■ Fully integrated for adapter, hub and
motherboard applications |
| ■ RoHS compliant* |
|
| CATALOG |
| PT61017PEL COUNTRY OF ORIGIN |
| PT61017PEL PARAMETRIC INFO |
| PT61017PEL PACKAGE INFO |
| PT61017PEL MANUFACTURING INFO |
| PT61017PEL PACKAGING INFO |
| PT61017PEL ECAD MODELS |
| PT61017PEL APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Taiwan (Province of China) |
|
| PARAMETRIC INFO |
| Transformer Type |
LAN 10/100Base-Tx |
| Turns Ratio |
2(1CT:1CT) |
| Maximum DCR Primary Side (Ohm) |
0.6 |
| Maximum DCR Secondary Side (Ohm) |
1.1 |
| Maximum OCL Inductance (mH) |
0.35(Min) |
| Maximum Insertion Loss (dB) |
1.1@0.1MHz to 100MHz |
| Minimum Return Loss (dB) |
-10@100MHz |
| High Potential |
1500VAC |
| Minimum Crosstalk (dB) |
-38@100MHz |
| Minimum CMRR (dB) |
-40@100MHz |
| Maximum Operating Temperature (°C) |
70 |
| Minimum Operating Temperature (°C) |
0 |
| Operating Temperature (°C) |
0 to 70 |
|
| |
| PACKAGE INFO |
| Mounting |
Surface Mount |
| Lead Style |
Gull Wing |
| Number of Terminals |
16 |
| Package Type |
SMD |
| Product Length (mm) |
12.8 |
| Product Depth (mm) |
9.3 |
| Product Height (mm) |
5.65 |
| Terminal Pitch (mm) |
1.27 |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
1 |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Phosphor-Bronze Alloy |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
E |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
600 |
| Packaging Document |
Link to Datasheet |
|

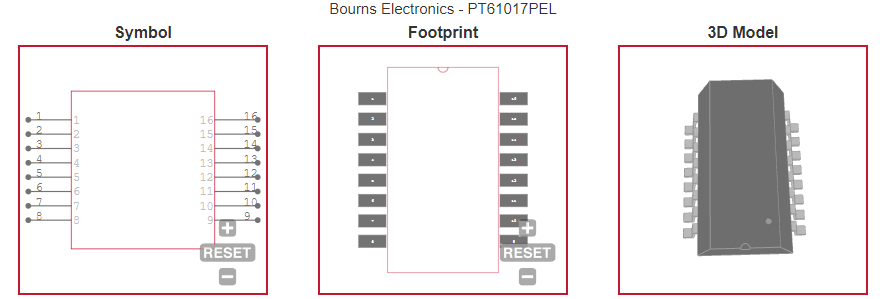

| |
| ECAD MODELS |
 |
| |
| APPLICATIONS |
| ■ LAN (Local Area Network)
|
| ■ Ethernet |
| |
