• Low insertion loss, 0.4 dB typ.
|
• High isolation, 26 dB typ.
|
• Wrap-around terminal for excellent solderability
|
• Ultra small, 0.12"x0.06"x0.035"
|
|
| CATALOG |
QCN-27+ COUNTRY OF ORIGIN
|
QCN-27+ PARAMETRIC INFO
|
QCN-27+ PACKAGE INFO
|
QCN-27+ MANUFACTURING INFO
|
QCN-27+ PACKAGING INFO
|
QCN-27+ APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Module/IC Classification |
IC |
| Number of Inputs |
1 |
| Number of Outputs |
2 |
| Frequency Range (MHz) |
1700 to 2700 |
| Minimum Operating Temperature (°C) |
-55 |
| Number of Ports |
2 |
| Maximum Power Rating (W) |
15 |
| Minimum Isolation (dB) |
18 |
| Maximum Operating Temperature (°C) |
100 |
| Input Signal Type |
Single-Ended |
| Output Signal Type |
Single-Ended |
| Maximum Input Power |
15W |
| Typical Insertion Loss (dB) |
0.5 |
| Typical Input VSWR |
1.2 |
| Typical Output VSWR |
1.2 |
| Output Impedance (Ohm) |
50 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
100 |
| Category |
Passive |
| Type |
Combiner/Splitter |
|
|
PACKAGE INFO
|
| Supplier Package |
Case FV1206-1 |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
No Lead |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.99 |
| Package Length (mm) |
3.2 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
0.89 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.89 |
| Mounting |
Surface Mount |
| Package Weight (g) |
0.02 |
| Package Material |
Ceramic |
| Package Description |
N/A |
| Package Family Name |
N/A |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
245 to 250 |
| Reflow Solder Time (Sec) |
N/A |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Ag |
| Number of Wave Cycles |
N/R |
|
|

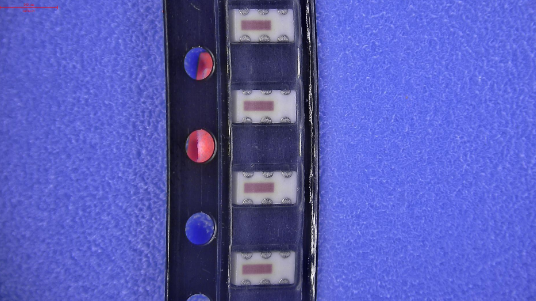

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Index At Sprocket Hole |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• Balanced amplifiers
|
• Modulators
|
• PCS/DCS
|
• MMDS
|
| • ISM |
| |
