• Halogen Free. “Green” Device (Note 1)
|
• High Reliability
|
• Low Reverse Current And Low Forward Voltage.
|
• Small Surface Mount Type
|
• Lead Free Finish/RoHS Compliant ("P"Suffix Designates RoHS Compliant. See Ordering Information)
|
• Epoxy Meets UL 94 V-0 Flammability Rating
|
• Moisture Sensitivity Level 1
|
|
| CATALOG |
RB521S-30DP-TP COUNTRY OF ORIGIN
|
RB521S-30DP-TP PARAMETRIC INFO
|
RB521S-30DP-TP PACKAGE INFO
|
RB521S-30DP-TP MANUFACTURING INFO
|
RB521S-30DP-TP PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Schottky Diode |
| Configuration |
Single |
| Peak Reverse Repetitive Voltage (V) |
30 |
| Maximum Continuous Forward Current (A) |
0.1 |
| Maximum Power Dissipation (mW) |
100 |
| Peak Forward Voltage (V) |
0.53 |
| Peak Non-Repetitive Surge Current (A) |
0.5 |
| Peak Reverse Current (uA) |
50 |
| Operating Junction Temperature (°C) |
-55 to 125 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Supplier Package |
Case 0201 |
| Pin Count |
2 |
| Lead Shape |
No Lead |
| PCB |
2 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.44(Max) |
| Package Length (mm) |
0.67(Max) |
| Package Width (mm) |
0.37(Max) |
| Package Height (mm) |
0.34(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
0.67(Max) |
| Package Overall Width (mm) |
0.37(Max) |
| Package Overall Height (mm) |
0.34(Max) |
| Seated Plane Height (mm) |
0.34(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Family Name |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|

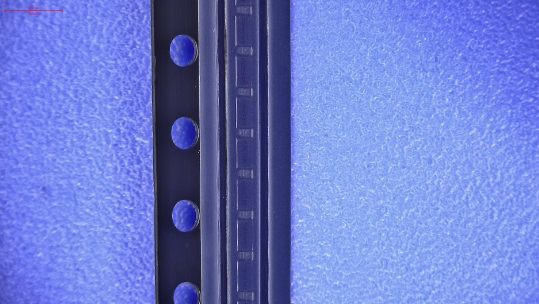

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
10000 |
|
|
