• Ultra small mold type.（EMD2）
|
• Low VF
|
• High reliability
|
|
| CATALOG |
| RB521S-30TE61 COUNTRY OF ORIGIN |
| RB521S-30TE61 LIFE CYCLE |
RB521S-30TE61 PARAMETRIC INFO
|
RB521S-30TE61 PACKAGE INFO
|
RB521S-30TE61 MANUFACTURING INFO
|
RB521S-30TE61 PACKAGING INFO
|
RB521S-30TE61 EACD MODELS
|
| RB521S-30TE61 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Korea (Republic of) |
| Thailand |
| Philippines |
| Japan |
| China |
|
| LIFE CYCLE |
| ObsoleteApr 30,2020 |
| |
PARAMETRIC INFO
|
| type |
Schottky Diode |
| Configuration |
Single |
| Maximum DC Reverse Voltage (V) |
30 |
| Maximum Continuous Forward Current (A) |
0.2 |
| Peak Forward Voltage (V) |
0.5 |
| Peak Non-Repetitive Surge Current (A) |
1 |
| Peak Reverse Current (uA) |
30 |
| Operating Junction Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Supplier packaging |
EMD |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
2 |
| Pin shape |
Flat |
| PCB |
2 |
| ears |
N/R |
| Pin spacing (mm) |
N/R |
| Package length (mm) |
1.2 |
| Package width (mm) |
0.8 |
| Package height (mm) |
0.6 |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
1.6 |
| Package Overall Width (mm) |
0.8 |
| Package Overall Height (mm) |
0.6 |
| Mounting surface height (mm) |
0.6 |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Package series name |
SOD |
| JEDEC |
not applicable |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
not applicable |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
265 |
| Wave soldering time (seconds) |
not applicable |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
SnAgCu |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy|FeNi Alloy |
|
|

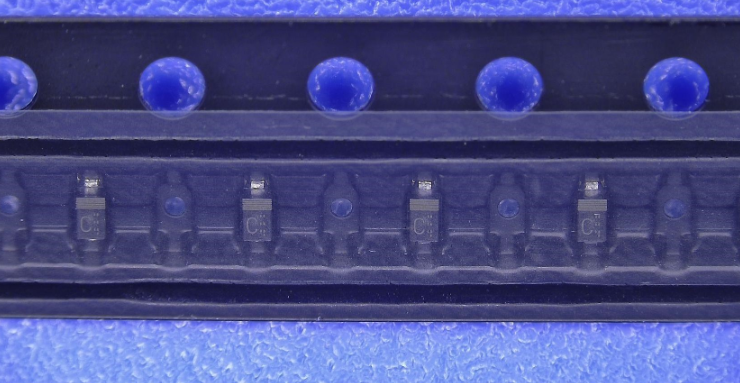

PACKAGING INFO
|
| Package |
Tape and reel packaging |
| Packing quantity |
3000 |
| packaging type file |
Link to datasheet |
|
|

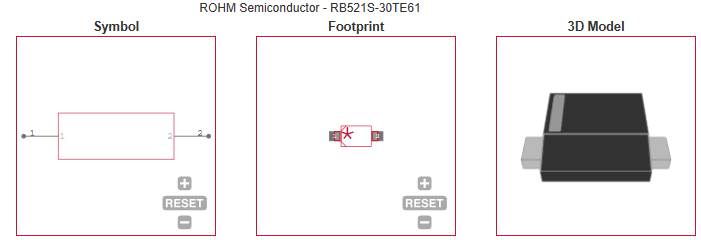

ECAD MODELS
|
|
|
| APPLICATIONS |
| • General rectification |
| |
