• Halogen Free Epoxy
|
• RoHS compliant Products with lead free terminations meet RoHS requirements Pb-glass contained in electrodes, resistors element and glass are exempted by RoHS
|
• Reducing environmentally hazardous wastes
|
| • High component and equipment reliability |
| • Saving of PCB space |
| • None forbidden-materials used in products/production |
| • MSL class: MSL 1 |
|
| CATALOG |
| RC0402FR-0716KL COUNTRY OF ORIGIN |
RC0402FR-0716KL PARAMETRIC INFO
|
RC0402FR-0716KL PACKAGE INFO
|
RC0402FR-0716KL MANUFACTURING INFO
|
RC0402FR-0716KL PACKAGING INFO
|
RC0402FR-0716KL EACD MODELS
|
| RC0402FR-0716KL APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Resistance Value (Ohm) |
16K |
| Temperature Coefficient (ppm/°C) |
±100 |
| Power Rating (W) |
0.063 (1/16) |
| Maximum Voltage Rating (V) |
50 |
| Tolerance |
1% |
| Negative Resistance Tolerance (%) |
-1 |
| Positive Resistance Tolerance (%) |
1 |
| Technology |
Thick Film |
| Package Shape |
Rectangular |
| Case Style |
Epoxy |
| Maximum Terminal Width (mm) |
0.55 |
| Operating Temperature (°C) |
-55 to 155 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
155 |
| Temperature Range @ Derated Power (°C) |
70 to 155 |
| Maximum Storage Temperature (°C) |
40 |
| Minimum Storage Temperature (°C) |
5 |
| Current Sensing |
No |
| Fail Safe Fusible Resistor |
No |
| Anti-Surge |
No |
| Anti-Sulfurated |
No |
| Pulse Withstand |
No |
| Special Features |
High Reliability |
|
|
PACKAGE INFO
|
| Case Size |
0402 |
| Package/Case |
0402 |
| Mounting |
Surface Mount |
| Package Type |
SMD |
| Termination Style |
Pad |
| Product Length (mm) |
1 |
| Product Depth (mm) |
0.5 |
| Product Height (mm) |
0.35 |
| Product Diameter (mm) |
N/R |
| Length Tolerance (mm) |
±0.05 |
| Depth Tolerance (mm) |
±0.05 |
| Height Tolerance (mm) |
±0.05 |
| Diameter Tolerance (mm) |
N/R |
| Maximum Product Length (mm) |
1.05 |
| Maximum Product Depth (mm) |
0.55 |
| Maximum Product Height (mm) |
0.4 |
| Terminal Pitch (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|

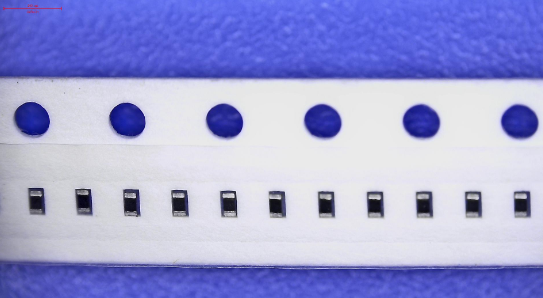

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
10000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
9 |
| Tape Pitch (mm) |
2 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Paper |
|
|

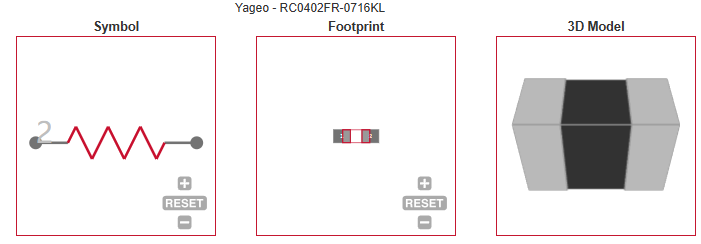

ECAD MODELS
|
|
|
| APPLICATIONS |
| • All general purpose application |
| |
