• Halogen Free Epoxy
|
• Reducing environmentally hazardous wastes
|
• High component and equipment reliability
|
• Saving of PCB space
|
• None forbidden-materials used in products/production
|
• MSL class: MSL 1
|
|
| CATALOG |

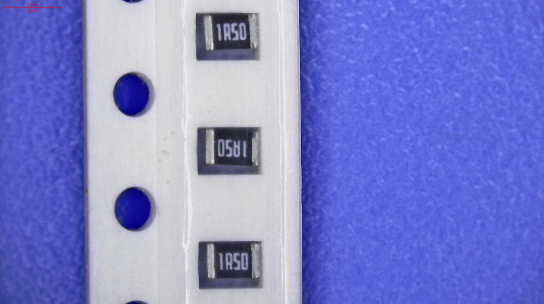

RC0805FR-7W1R5L COUNTRY OF ORIGIN
|
RC0805FR-7W1R5L PARAMETRIC INFO
|
RC0805FR-7W1R5L PACKAGE INFO
|
RC0805FR-7W1R5L MANUFACTURING INFO
|
RC0805FR-7W1R5L PACKAGING INFO
|
RC0805FR-7W1R5L APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Resistance Value (Ohm) |
1.5 |
| Temperature Coefficient (ppm/°C) |
±200 |
| Power Rating (W) |
0.25 (1/4) |
| Maximum Voltage Rating (V) |
150 |
| Tolerance |
1% |
| Negative Resistance Tolerance (%) |
-1 |
| Positive Resistance Tolerance (%) |
1 |
| Technology |
Thick Film |
| Package Shape |
Rectangular |
| Case Style |
Epoxy |
| Operating Temperature (°C) |
-55 to 155 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
155 |
| Temperature Range @ Derated Power (°C) |
70 to 155 |
| Maximum Storage Temperature (°C) |
40 |
| Minimum Storage Temperature (°C) |
5 |
| Current Sensing |
No |
| Fail Safe Fusible Resistor |
No |
| Anti-Surge |
No |
| Anti-Sulfurated |
No |
|
|
PACKAGE INFO
|
| Case Size |
0805 |
| Package/Case |
0805 |
| Mounting |
Surface Mount |
| Package Type |
SMD |
| Termination Style |
Pad |
| Product Length (mm) |
2 |
| Product Depth (mm) |
1.25 |
| Product Height (mm) |
0.5 |
| Product Diameter (mm) |
N/R |
| Diameter Tolerance (mm) |
N/R |
| Terminal Pitch (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Maximum Wave Temperature (°C) |
250 to 260 |
| Wave Solder Time (Sec) |
10 |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
5000 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Paper |
|
|
APPLICATIONS
|
• All general purpose application
|
| |
