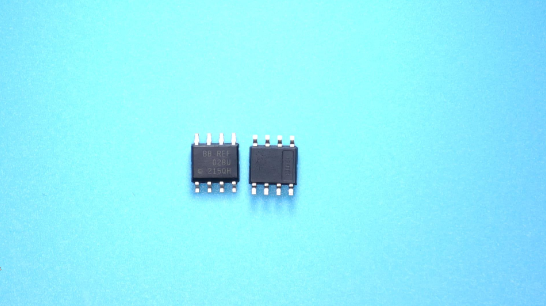

| ● OUTPUT VOLTAGE: +5V ±0.2% max |
| ● EXCELLENT TEMPERATURE STABILITY:
10ppm/°C max (–40°C to +85°C) |
| ● LOW NOISE: 10µVPP max (0.1Hz to 10Hz) |
| ● EXCELLENT LINE REGULATION:
0.01%/V max |
| ● EXCELLENT LOAD REGULATION:
0.008%/mA max |
| ● LOW SUPPLY CURRENT: 1.4mA max |
| ● SHORT-CIRCUIT PROTECTED |
| ● WIDE SUPPLY RANGE: 8V to 40V |
| ● INDUSTRIAL TEMPERATURE RANGE:
–40°C to +85°C |
| ● PACKAGE OPTIONS: DIP-8, SO-8 |
|
| CATALOG |
| REF02BU COUNTRY OF ORIGIN |
| REF02BU PARAMETRIC INFO |
| REF02BU PACKAGE INFO |
| REF02BU MANUFACTURING INFO |
| REF02BU PACKAGING INFO |
| REF02BU ECAD MODELS |
| REF02BU APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Thailand |
| Malaysia |
| Taiwan (Province of China) |
| Philippines |
|
| PARAMETRIC INFO |
| Topology |
Series |
| Reference Type |
Precision |
| Output Voltage (V) |
5 |
| Initial Accuracy |
0.2% |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-65 |
| Load Regulation |
0.008%/mA |
| Line Regulation |
0.01%/V |
| Maximum Input Voltage (V) |
40 |
| Regulation Condition Change In Load |
10mA |
| Maximum Output Current (mA) |
21(Typ) |
| Regulation Condition Change In Line |
25V |
| Maximum Temperature Coefficient |
10ppm/°C |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
5 Years |
| Shelf Life Condition |
N/A |
| Number of Wave Cycles |
N/R |
|
| |
| PACKAGING INFO |
| Packaging |
Tube |
| Quantity Of Packaging |
75 |
| Packaging Document |
Link to Datasheet |
|
| |

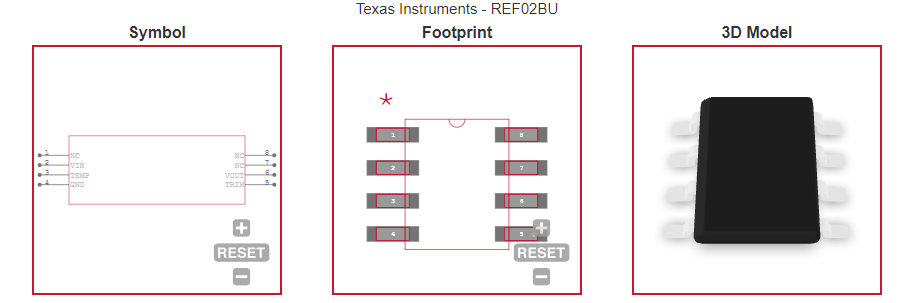

| ECAD MODELS |
 |
|
| APPLICATIONS |
| ● PRECISION REGULATORS |
| ● CONSTANT CURRENT SOURCE/SINK |
| ● DIGITAL VOLTMETERS |
| ● V/F CONVERTERS |
| ● A/D AND D/A CONVERTERS |
| ● PRECISION CALIBRATION STANDARD |
| ● TEST EQUIPMENT |
|
