| • +10V ±0.0025V OUTPUT |
| • VERY LOW DRIFT: 2.5ppm/°C max |
| • EXCELLENT STABILITY:
5ppm/1000hr typ |
| • EXCELLENT LINE REGULATION:
1ppm/V max |
| • EXCELLENT LOAD REGULATION:
10ppm/mA max |
| • LOW NOISE: 5µVPP typ, 0.1Hz to 10Hz
|
| • WIDE SUPPLY RANGE: 11.4VDC to 36VDC |
| • LOW QUIESCENT CURRENT: 1.4mA max |
| • PACKAGE OPTIONS: PLASTIC DIP, SO-8 |
|
| CATALOG |
| REF102AU/2K5 COUNTRY OF ORIGIN |
| REF102AU/2K5 PARAMETRIC INFO |
| REF102AU/2K5 PACKAGE INFO |
| REF102AU/2K5 MANUFACTURING INFO |
| REF102AU/2K5 PACKAGING INFO |
| REF102AU/2K5 ECAD MODELS |
| REF102AU/2K5 FUNCTONL BLOCK DIAGRAM |
| REF102AU/2K5 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Philippines |
| Taiwan (Province of China) |
|
| PARAMETRIC INFO |
| Topology |
Series |
| Reference Type |
Precision |
| Output Voltage (V) |
10 |
| Initial Accuracy |
10mV |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Load Regulation |
40ppm/mA |
| Line Regulation |
2ppm/V |
| Maximum Input Voltage (V) |
40 |
| Maximum Output Current (mA) |
10 |
| Maximum Temperature Coefficient |
10ppm/°C |
|
| PACKAGE INFO |
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|

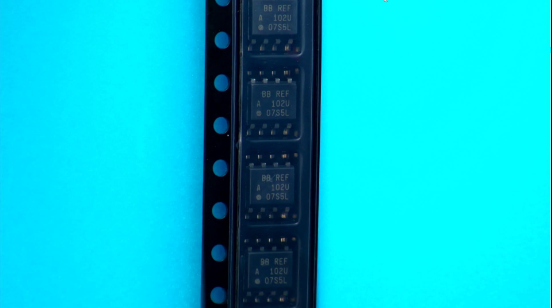

| PACKAGING INFO |
| Packaging Suffix |
2K5 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|

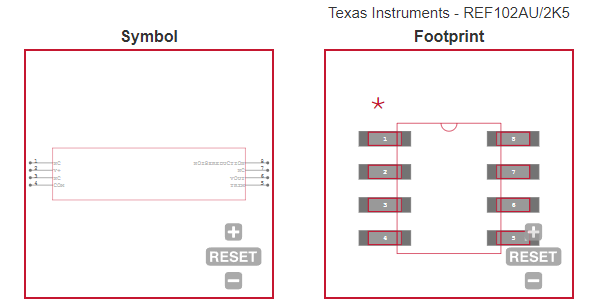

| ECAD MODELS |
 |
|

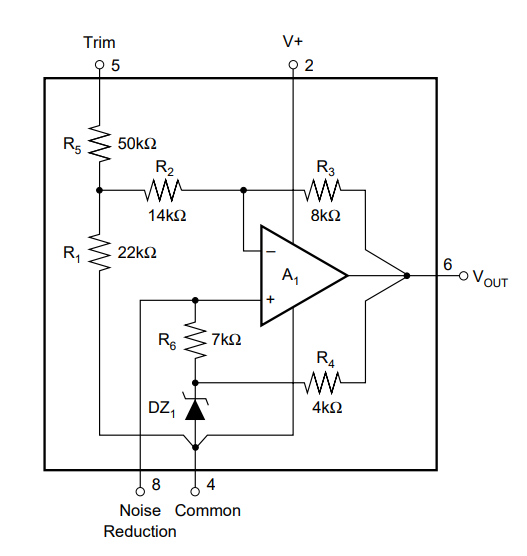

| FUNCTONL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • PRECISION-CALIBRATED VOLTAGE
STANDARD |
| • D/A AND A/D CONVERTER REFERENCE |
| • PRECISION CURRENT REFERENCE
|
| • ACCURATE COMPARATOR THRESHOLD
REFERENCE
|
| • DIGITAL VOLTMETER
|
| • TEST EQUIPMENT |
| • PC-BASED INSTRUMENTATION |
|
