• Two outputs, VREF and VREF / 2, for convenient
use in single-supply systems
|
• Excellent temperature drift performance:
– 8 ppm/°C (maximum) from –40°C to 125°C
|
• High initial accuracy: ±0.05% (maximum)
|
| • VREF and VBIAS tracking overtemperature:
– 6 ppm/°C (maximum) from –40°C to 85°C
– 7 ppm/°C (maximum) from –40°C to 125°C
|
| • Microsize package: SOT23-5 |
| • Low dropout voltage: 10 mV |
| • High output current: ±20 mA |
| • Low quiescent current: 360 μA |
| • Line regulation: 3 ppm/V |
| • Load regulation: 8 ppm/mA |
| • Matte-Sn version (REF2025AISDDCR) for
improved corrosion resistance in the Battelle Class
III and similar harsh environments |
|
| CATALOG |
| REF2030AIDDCT COUNTRY OF ORIGIN |
REF2030AIDDCT PARAMETRIC INFO
|
REF2030AIDDCT PACKAGE INFO
|
REF2030AIDDCT MANUFACTURING INFO
|
REF2030AIDDCT PACKAGING INFO
|
REF2030AIDDCT ECAD MODELS
|
REF2030AIDDCT APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| Thailand |
|
PARAMETRIC INFO
|
| Topology |
Series |
| Reference Type |
Precision |
| Output Voltage (V) |
3 |
| Initial Accuracy |
0.05% |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Storage Temperature (°C) |
170 |
| Minimum Storage Temperature (°C) |
-65 |
| Load Regulation |
20ppm/mA |
| Line Regulation |
35ppm/V |
| Maximum Input Voltage (V) |
6 |
| Regulation Condition Change In Load |
20mA |
| Maximum Output Current (mA) |
20 |
| Maximum Temperature Coefficient |
8ppm/°C |
|
|
PACKAGE INFO
|
| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3.05(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-193AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

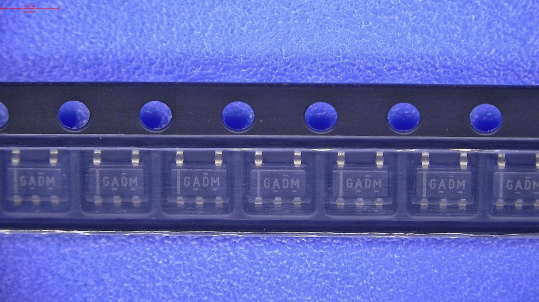

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Electricity meter
|
• Analog input module
|
| • Enterprise
|
| • Servo drive control module
|
• Circuit breaker (ACB, MCCB, VCB)
|
| • Clinical digital thermometer |
| • Lab & field instrumentation |
| • Battery test |
| |
