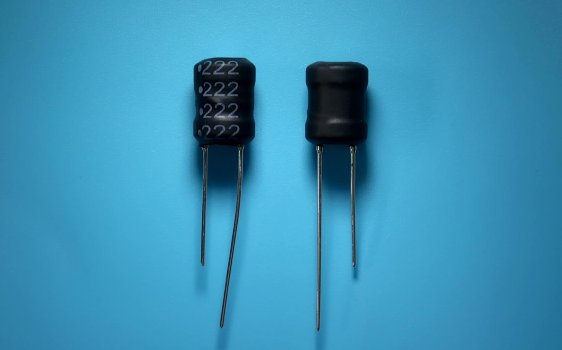

• Available in E12 series
|
• Inductance range: 1.0 μH to 47 mH
|
• RoHS compliant*
|
|
| CATALOG |
RLB9012-222KL COUNTRY OF ORIGIN
|
RLB9012-222KL PARAMETRIC INFO
|
RLB9012-222KL PACKAGE INFO
|
RLB9012-222KL MANUFACTURING INFO
|
RLB9012-222KL PACKAGING INFO
|

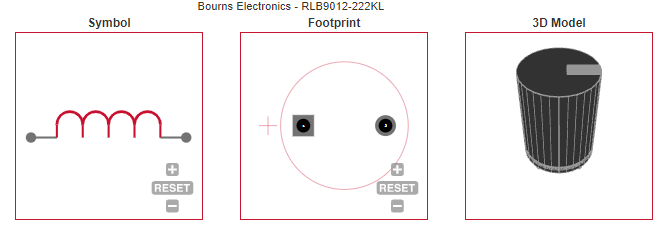

RLB9012-222KL ECAD MODELS
|
RLB9012-222KL APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Power |
| Technology |
Wirewound |
| Core Material |
Ferrite |
| Inductance (H) |
2200u |
| Tolerance |
10% |
| Inductance Test Frequency (Hz) |
1K |
| Maximum DC Current (A) |
0.36 |
| Maximum DC Resistance (Ohm) |
5.9 |
| Minimum Quality Factor |
15 |
| Quality Test Frequency (Hz) |
252K |
| Minimum Self Resonant Frequency (Hz) |
0.8M |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Operating Temperature (°C) |
-55 to 125 |
| Maximum Storage Temperature (°C) |
105 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Lead Style |
Radial |
| Maximum Product Length (mm) |
N/R |
| Maximum Product Depth (mm) |
N/R |
| Maximum Product Height (mm) |
12.2 |
| Maximum Product Diameter (mm) |
9 |
| Terminal Pitch (mm) |
5 |
| Mounting |
Through Hole |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Lead Finish(Plating) |
SnAgCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
1 |
|
|
PACKAGING INFO
|
|
|
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Power supplies |
| • DC/DC converters |
| • General use |
| |
