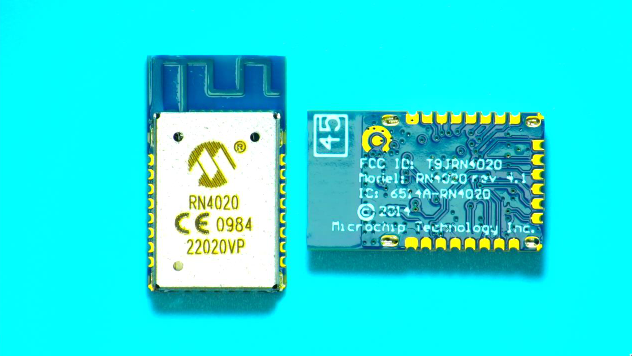

• Fully certified Bluetooth® version 4.1 module
|
• On-board Bluetooth Low Energy 4.1 stack
|
• ASCII command interface API over UART
|
| • Device Firmware Upgrade (DFU) over UART or Over the Air (OTA)
|
| • Microchip Low-energy Data Profile (MLDP) for serial data applications |
| • Remote commands over-the-air |
| • 64 KB internal flash |
| • Compact form factor: 11.5 x 19.5 x 2.5 mm |
| • Castellated SMT pads for easy and reliable PCB mounting |
| • Environmentally friendly, RoHS compliant |
| • Certifications: FCC, IC, CE, QDID, VCCI, KCC, and NCC |
| |
| CATALOG |
RN4020-V/RMBEC133 PARAMETRIC INFO
|
RN4020-V/RMBEC133 PACKAGE INFO
|
RN4020-V/RMBEC133 MANUFACTURING INFO
|
RN4020-V/RMBEC133 PACKAGING INFO
|
| RN4020-V/RMBEC133 APPLICATIONS |
|
PARAMETRIC INFO
|
| type |
Module |
| Minimum Operating Frequency (MHz) |
2400 |
| Maximum Operating Frequency (MHz) |
2480 |
| Maximum Data Rate (Mbps) |
1 |
| Minimum Operating Temperature (°C) |
-30 |
| Maximum Operating Temperature (°C) |
85 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Operating Supply Voltage (V) |
3.3 |
| Typical Sensitivity (dBm) |
-92.5 |
| Protocols Supported |
Bluetooth v4.1 (BLE) |
| Interface Type |
ADC/GPIO/UART |
| Solutions |
ISM |
| ISM Band |
2.4GHz |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
| Antenna Mounting |
On Board |
| Processing Unit Type |
Microcontroller |
| Special Features |
IoT |
|
|
PACKAGE INFO
|
| Supplier packaging |
SMD Module |
| Number of pins |
twenty four |
| PCB |
twenty four |
| ears |
N/R |
| Package length (mm) |
19.5 |
| Package width (mm) |
11.5 |
| Package height (mm) |
2.3 |
| Package diameter (mm) |
N/R |
| Install |
Surface Mount |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
not applicable |
| Lead Finish(Plating) |
AHr |
|
|
PACKAGING INFO
|
| Package |
Tray |
| Packing quantity |
84 |
|
|
| APPLICATIONS |
| • Health/Medical Devices- Glucose meters- Heart rate- Scale |
| • Sports Activity and Fitness- Pedometer- Cycling computer- Heart rate |
| • Retail- Point of Sale (POS)- Asset tagging and tracking- Proximity advertising |
| • Beacon Applications |
| • Internet of Things (IoT) Sensor tag |
| • Remote Control- Embedded Device Control- AV consoles and game controllers |
| • Wearable Smart Devices and Accessories |
| • Industrial Control- Private (custom) services- Low bandwidth cable replacement |
| • Smart Energy/Smart Home |
| |
