• 3V to 24V Input Voltage Range
|
• 3A Output Current
|
• Internal N-MOSFETs
|
• Current Mode Control
|
• Fixed Frequency Operation : 500kHz
|
|
| CATALOG |
RT8299GSP COUNTRY OF ORIGIN
|
RT8299GSP PARAMETRIC INFO
|
RT8299GSP PACKAGE INFO
|
RT8299GSP MANUFACTURING INFO
|
RT8299GSP APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
3 |
| Maximum Input Voltage (V) |
24 |
| Output Voltage (V) |
0.8 to 15 |
| Maximum Output Current (A) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Switching Frequency (kHz) |
575 |
| Efficiency (%) |
95 |
| Switching Regulator |
Yes |
| Output Type |
Adjustable |
| Load Regulation |
5%(Typ) |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
5.5 |
|
|

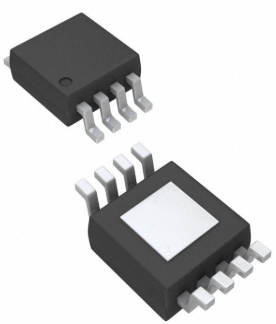

PACKAGE INFO
|
| Supplier Package |
PSOP EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.35(Max) |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.6(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Package, Exposed Pad |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
APPLICATIONS
|
• Industrial and Commercial Low Power Systems
|
• Computer Peripherals
|
• LCD Monitors and TVs
|
• Green Electronics/Appliances
|
• Point of Load Regulation for High Performance DSPs, FPGAs, and ASICs
|
|
