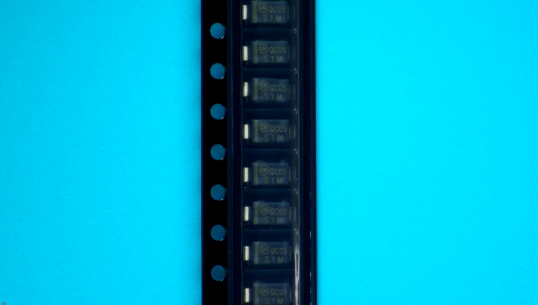

S1M onsemi / Fairchild DIODE GEN PURP 1KV 1A SMA

label:

2023/10/31 274

CATALOG

S1M COUNTRY OF ORIGIN

S1M PARAMETRIC INFO

S1M PACKAGE INFO

S1M MANUFACTURING INFO

S1M PACKAGING INFO

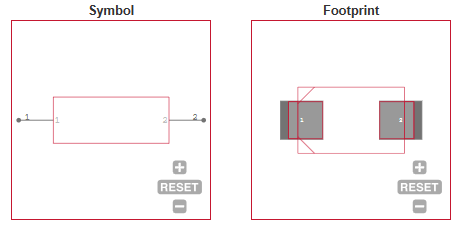

S1M ECAD MODELS

COUNTRY OF ORIGIN

China

Israel

Taiwan (Province of China)

PARAMETRIC INFO

Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1000
Maximum Continuous Forward Current (A)	1@Ta=100C
Maximum Power Dissipation (mW)	1400
Speed	Standard Recovery Rectifier
Maximum Junction Ambient Thermal Resistance	170°C/W
Peak Forward Voltage (V)	1.1
Peak Non-Repetitive Surge Current (A)	30
Peak Reverse Current (uA)	1
Peak Reverse Recovery Time (ns)	1800(Typ)
Operating Junction Temperature (°C)	-55 to 150
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	150
Maximum Diode Capacitance (pF)	6.6(Typ)
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150

Supplier Package	SMA
Basic Package Type	Lead-Frame SMT
Pin Count	2
Lead Shape	J-Lead
PCB	2
Tab	N/R
Pin Pitch (mm)	N/R
Package Length (mm)	4.75(Max)
Package Width (mm)	2.95(Max)
Package Height (mm)	2.2(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	5.6(Max)
Package Overall Width (mm)	2.95(Max)
Package Overall Height (mm)	2.5(Max)
Seated Plane Height (mm)	2.5(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	SMD Plastic Package
Package Family Name	DO-214-AC
Jedec	DO-214AC
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	N/A
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	CuFeP
Number of Wave Cycles	N/R

Packaging	Tape and Reel
Quantity Of Packaging	7500
Packaging Document	Link to Datasheet
