| • Low power consumption: 3.3 mA typical |
| • Temperature compensated logarithmic RSSI with a 90 dB dynamic range |
| • Two audio outputs - muted and unmuted |
| • Low external component count; suitable for crystal/ceramic filters |
| • Excellent sensitivity: 1.5 V across inputs pins (0.22 V into 50 matching network)
for 12 dB SINAD (SIgnal-to-Noise-And-Distortion ratio) for 1 kHz tone with RF at
45 MHz and IF at 455 kHz |
| • SA614A meets cellular radio specifications |
|
| CATALOG |
| SA614AD/01,118 COUNTRY OF ORIGIN |
| SA614AD/01,118 LIFECYCLE |
| SA614AD/01,118 PARAMETRIC INFO |
| SA614AD/01,118 PACKAGE INFO |
| SA614AD/01,118 MANUFACTURING INFO |
| SA614AD/01,118 PACKAGING INFO |
| SA614AD/01,118 FUNCTIONAL BLOCK DIAGRAM |
| SA614AD/01,118 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
| Thailand |
|
| LIFECYCLE |
Obsolete
Nov 18,2022 |
|
| PARAMETRIC INFO |
| Category |
Low Power FM IF |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SO |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
Gull-wing |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
10(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.45(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
10(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
N/A |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Shelf Life Condition |
N/A |
| Number of Wave Cycles |
N/R |
|

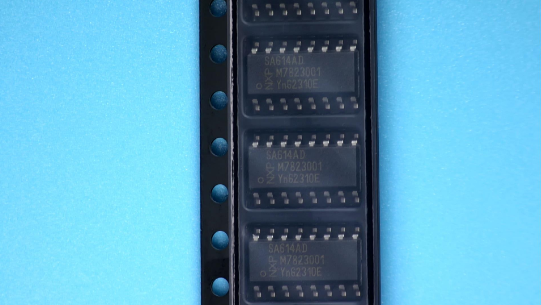

| |
| PACKAGING INFO |
| Packaging Suffix |
,118 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
| |

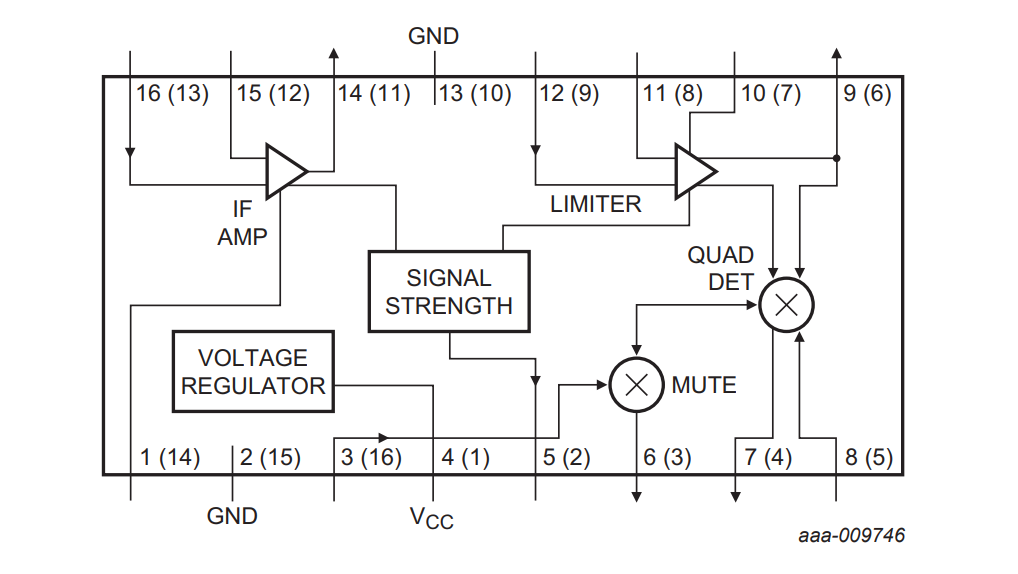

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Cellular radio FM IF |
| • High performance communication receiver |
| • Intermediate frequency amplification and detection up to 25 MHz |
| • RF level meter |
| • Spectrum analyzer |
| • Instrumentation |
| • FSK and ASK data receivers |
|
