| ■ Available in E12 series |
| ■ Low profile of only 3.2 mm |
| ■ Low inductance values |
| ■ RoHS compliant*
|
|
| CATALOG |
| SDR0403-120ML COUNTRY OF ORIGIN |
| SDR0403-120ML PARAMETRIC INFO |
| SDR0403-120ML PACKAGE INFO |
| SDR0403-120ML MANUFACTURING INFO |
| SDR0403-120ML PACKAGING INFO |

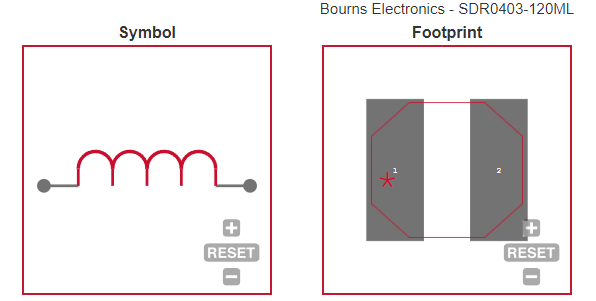

| SDR0403-120ML ECAD MODELS |
| SDR0403-120ML APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Malaysia |
| Singapore |
|
| PARAMETRIC INFO |
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Unshielded |
| Core Material |
Ferrite |
| Inductance (H) |
12u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
1K |
| Maximum DC Current (A) |
1.05 |
| Maximum Saturation Current (A) |
1.6(Typ) |
| Inductance Decrease Percentage @ Isat (%) |
10 |
| Maximum DC Resistance (Ohm) |
0.21 |
| Minimum Quality Factor |
28 |
| Quality Test Frequency (Hz) |
2.52M |
| Minimum Self Resonant Frequency (Hz) |
30M |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 125 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
|
| |
| PACKAGE INFO |
| Case Size |
N/A |
| Product Length (mm) |
4.8 |
| Product Depth (mm) |
4.3 |
| Product Height (mm) |
3.5 |
| Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
| Mounting |
Surface Mount |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
5 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Ag |
|
| |
| PACKAGING INFO |
|
|
| |
| ECAD MODELS |
 |
|
| APPLICATIONS |
| ■ Input/output of DC/DC converters |
■ Power supplies for:
- Portable communications equipment
- Camcorders
- LCD TVs |
|
