• Frequency range = 119–1050 MHz
|
• Receive sensitivity = –126 dBm
|
• PA support for +27 or +30 dBm
|
• Data rate = 100 bps to 1 Mbps
|
• Fast wake and hop times
|
|
| CATALOG |
SI4463-B1B-FMR COUNTRY OF ORIGIN
|
SI4463-B1B-FMR PARAMETRIC INFO
|
SI4463-B1B-FMR PACKAGE INFO
|
SI4463-B1B-FMR MANUFACTURING INFO
|
SI4463-B1B-FMR PACKAGING INFO
|
SI4463-B1B-FMR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Category |
Transceiver |
| Maximum RF Operating Frequency Range (MHz) |
100 to 500|500 to 1500 |
| Modulation Technique |
FSK/GFSK/GMSK/MSK/OOK |
| Maximum Data Rate |
1Mbps |
| Operating Band Frequency (MHz) |
142 to 1050 |
| Maximum RF Operating Frequency (MHz) |
1050 |
| Solutions |
ISM |
| Typical Transmitter Output Power (dBm) |
20(Max) |
| Typical Receiver Sensitivity (dBm) |
-126 |
| Interface Type |
Serial (4-Wire) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
| Typical Operating Supply Voltage |
3.3V |
| Minimum Operating Supply Voltage |
1.8V |
| Operating Supply Voltage |
3.3V |
| Maximum Operating Supply Voltage |
3.6V |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
20 |
| Lead Shape |
No Lead |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
4 |
| Package Width (mm) |
4 |
| Package Height (mm) |
0.83 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4 |
| Package Overall Width (mm) |
4 |
| Package Overall Height (mm) |
0.85 |
| Seated Plane Height (mm) |
0.85 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |

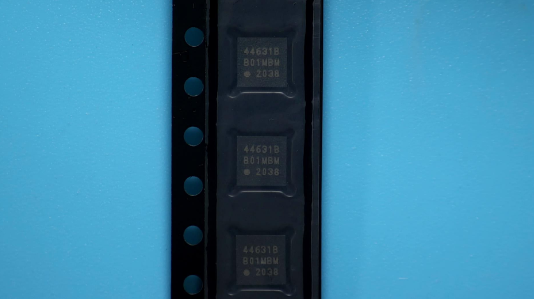

Tape and Reel |
| Quantity Of Packaging |
2500(Min) |
|
| |
| APPLICATIONS |
| • Smart metering (802.15.4g & MBus) |
| • Remote control |
| • Home security and alarm |
|
