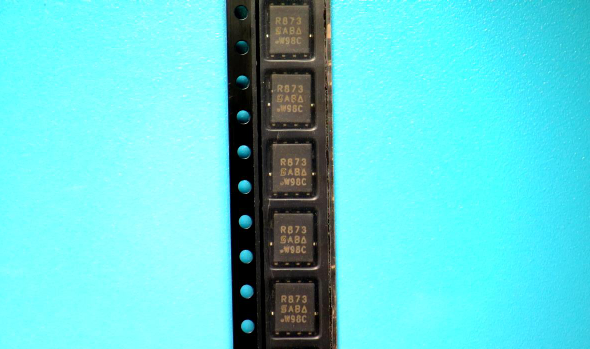

SiR873DP-T1-GE3 Vishay Semiconductors MOSFET P-CH 150V 37A PPAK SO-8


• TrenchFET® power MOSFET
• Very low RDS(ON) minimizes power loss from conduction
• 100 % Rg and UIS tested
• Material categorization:for definitions of compliance please see www.vishay.com/doc?99912


CATALOG
SIR873DP-T1-GE3 COUNTRY OF ORIGIN
SIR873DP-T1-GE3 PARAMETRIC INFO
SIR873DP-T1-GE3 PACKAGE INFO
SIR873DP-T1-GE3 MANUFACTURING INFO
SIR873DP-T1-GE3 PACKAGING INFO
SIR873DP-T1-GE3 ECAD MODELS
SIR873DP-T1-GE3 APPLICATIONS


COUNTRY OF ORIGIN
China


PARAMETRIC INFO
Channel Type P
Channel Mode Enhancement
Configuration Single Quad Drain Triple Source
Maximum Drain Source Voltage (V) 150
Maximum Absolute Continuous Drain Current (A) 37
Maximum Continuous Drain Current (A) 37
Maximum Gate Source Voltage (V) ±20
Maximum Drain Source Resistance (mOhm) 47.5@10V
Typical Gate Charge @ Vgs (nC) 25@7.5V|31.8@10V
Typical Gate Charge @ 10V (nC) 31.8
Operating Junction Temperature (°C) -55 to 150
Maximum Power Dissipation (mW) 6250
Process Technology TrenchFET
Minimum Gate Threshold Voltage (V) 2
Category Power MOSFET
Typical Output Capacitance (pF) 332
Typical Gate to Drain Charge (nC) 9.5
Typical Gate to Source Charge (nC) 9.2
Maximum Junction Ambient Thermal Resistance 20°C/W
Typical Gate Resistance (Ohm) 3.4
Maximum Junction Case Thermal Resistance 1.2°C/W
Maximum Positive Gate Source Voltage (V) 20
Minimum Gate Resistance (Ohm) 1.9
Maximum Gate Resistance (Ohm) 6
Typical Input Capacitance @ Vds (pF) 1805@75V
Typical Reverse Transfer Capacitance @ Vds (pF) 14.5@75V
Typical Diode Forward Voltage (V) 0.79
Typical Reverse Recovery Charge (nC) 245
Maximum Diode Forward Voltage (V) 1.1
Typical Reverse Recovery Time (ns) 75
Maximum Pulsed Drain Current @ TC=25°C (A) 50
Typical Forward Transconductance (S) 12
Typical Turn-On Delay Time (ns) 15
Typical Turn-Off Delay Time (ns) 28
Typical Fall Time (ns) 9
Typical Rise Time (ns) 7
Maximum Gate Source Leakage Current (nA) 100
Maximum Gate Threshold Voltage (V) 4
Maximum IDSS (uA) 1
Number of Elements per Chip 1
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Tradename TrenchFET®


PACKAGE INFO
Supplier Package PowerPAK SO EP
Basic Package Type Non-Lead-Frame SMT
Pin Count 8
Lead Shape No Lead
PCB 8
Tab N/R
Pin Pitch (mm) 1.27
Package Length (mm) 4.9
Package Width (mm) 5.89
Package Height (mm) 1.07(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 5.15
Package Overall Width (mm) 6.15
Package Overall Height (mm) 1.04
Seated Plane Height (mm) 1.04
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description N/A
Package Family Name N/A
Jedec N/A
Package Outline Link to Datasheet


MANUFACTURING INFO
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 20 to 40
Number of Reflow Cycle 3
Standard J-STD-020C
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Number of Wave Cycles N/R


PACKAGING INFO
Packaging Suffix T1
Packaging Tape and Reel
Quantity Of Packaging 3000
Reel Diameter (in) 13
Reel Width (mm) 12.4
Tape Pitch (mm) 8
Tape Width (mm) 12
Feed Hole Pitch (mm) 4
Hole Center to Component Center (mm) 2
Packaging Document Link to Datasheet


ECAD MODELS

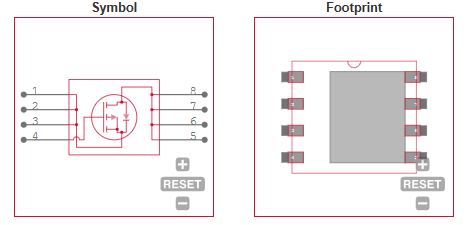

APPLICATIONS
• Active clamp in DC/DC power supplies
• Battery protection
• Load switch
• Motor drive control
