• Low insertion loss: 0.40 dB @ 2.0 GHz
|
• High isolation: >25 dB @ 2.0 GHz
|
• Single bit control
|
• Small QFN (6-pin, 1 x 1 mm) package(MSL1, 260 C per JEDEC J-STD-020)
|
|
| CATALOG |
SKY13453-385LF COUNTRY OF ORIGIN
|
SKY13453-385LF PARAMETRIC INFO
|
SKY13453-385LF PACKAGE INFO
|
SKY13453-385LF MANUFACTURING INFO
|
SKY13453-385LF PACKAGING INFO
|
SKY13453-385LF ECAD MODELS
|
SKY13453-385LF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Switch Type |
SPDT |
| Number of Switches |
1 |
| Switch Configuration |
Single SPDT |
| Frequency Band (MHz) |
10 to 6000 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
90 |
| Maximum Insertion Loss (dB) |
0.85 |
| Maximum Frequency (MHz) |
6000 |
| Switching Speed (ns) |
0.00065(Typ) |
| Minimum Operating Supply Voltage (V) |
2.5 |
| Maximum Input Power |
33 |
| Maximum Operating Supply Voltage (V) |
3.5 |
| High Control Voltage (V) |
1.35 to 3 |
| Minimum Isolation Voltage (dB) |
22 |
| Typical Supply Current (mA) |
0.003 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
No Lead |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
1 |
| Package Width (mm) |
1 |
| Package Height (mm) |
0.43 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.45 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package |
| Package Family Name |
QFN |
| Jedec |
MO-287X1AAF |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
90 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

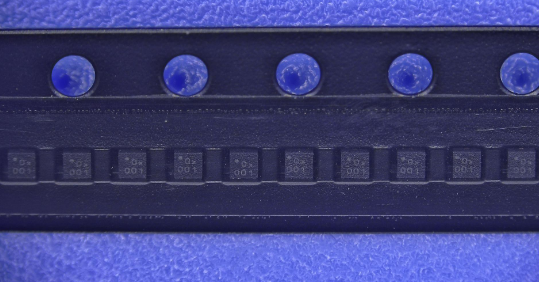

PACKAGING INFO
|
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • Cellular pre-PA mode switches |
| • Dual-band WLANs (802.11a/b/g/n) |
| |
