| SLF7045T-151MR40-PF COUNTRY OF ORIGIN |
SLF7045T-151MR40-PF PARAMETRIC INFO
|
SLF7045T-151MR40-PF PACKAGE INFO
|
SLF7045T-151MR40-PF MANUFACTURING INFO
|
SLF7045T-151MR40-PF PACKAGING INFO
|
SLF7045T-151MR40-PF EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Philippines |
| China |
|
PARAMETRIC INFO
|
| type |
Power |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Ferrite |
| Inductance (H) |
150u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
100K |
| Maximum DC Current (A) |
0.55(Typ) |
| Typical Temperature Rise (°C) |
20 |
| Maximum Saturation Current (A) |
0.4 |
| Inductance Decrease Percentage @ Isat (%) |
10 |
| Maximum DC Resistance (Ohm) |
0.408 |
| Maximum Operating Temperature (°C) |
105 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 105 |
| Maximum Storage Temperature (°C) |
105 |
| Minimum Storage Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Case Size |
not applicable |
| Product Length (mm) |
7.2 |
| Product Depth (mm) |
7.2 |
| Product Height (mm) |
4.8 |
| Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
0.6 |
| Package Shape |
Square |
| Terminal Pitch (mm) |
N/R |
| Install |
Surface Mount |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
250 |
| Reflow soldering time (seconds) |
5 |
| Number of reflow cycles |
not applicable |
| standard |
not applicable |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Solder |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|

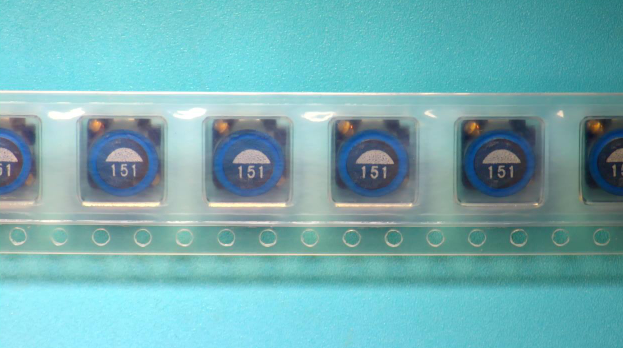

PACKAGING INFO
|
| Packaging Suffix |
T |
| Package |
Tape and reel packaging |
| Packing quantity |
1000 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
12 |
| Tape Width (mm) |
16 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| packaging type file |
Link to datasheet |
| Tape Material |
Plastic |
|
| |

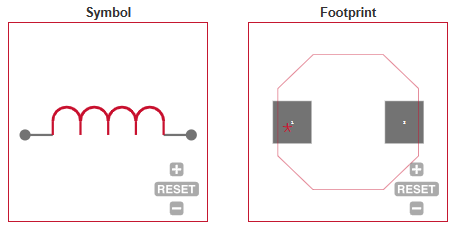

ECAD MODELS
|
|
