| • Magnetic shield type wound inductor for power circuits. |
| • Product lineup allows for various usages. |
| • Operating temperature range: –40 to +125°C (including self-temperature rise) |
|
| CATALOG |
| SLF7045T-220M1R3-H COUNTRY OF ORIGIN |
| SLF7045T-220M1R3-H PARAMETRIC INFO |
| SLF7045T-220M1R3-H PACKAGE INFO |
| SLF7045T-220M1R3-H MANUFACTURING INFO |
| SLF7045T-220M1R3-H PACKAGING INFO |

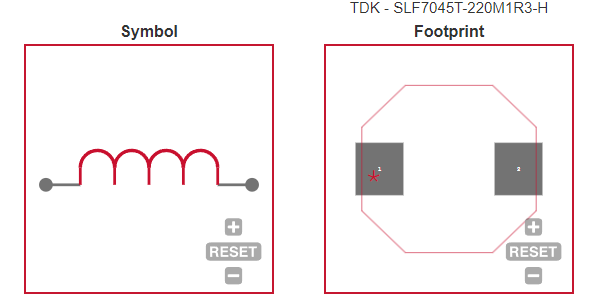

| SLF7045T-220M1R3-H ECAD MODELS |
| SLF7045T-220M1R3-H APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
| China |
|
| PARAMETRIC INFO |
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Ferrite |
| Inductance (H) |
22u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
100K |
| Maximum DC Current (A) |
1.25(Typ) |
| Typical Temperature Rise (°C) |
20 |
| Maximum Saturation Current (A) |
1.3 |
| Maximum DC Resistance (Ohm) |
0.0984 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 125 |
|
| |
| PACKAGE INFO |
| Case Size |
N/A |
| Product Length (mm) |
7.2 |
| Product Depth (mm) |
7.2 |
| Product Height (mm) |
4.8 |
| Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
0.62 |
| Mounting |
Surface Mount |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
N/A |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |

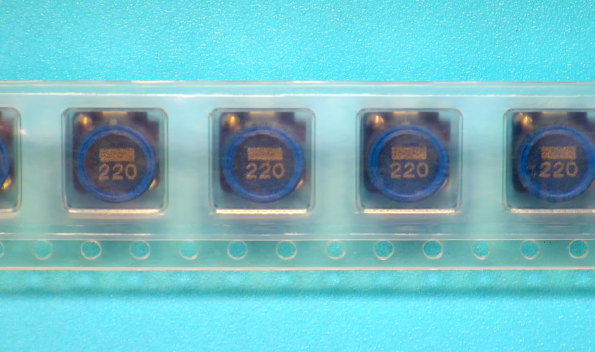

| PACKAGING INFO |
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Blister |
|
| |
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Automotive-related equipment (ECM, airbags, headlights, electronic power steering, meters, ABS, other) |
| • Application guides: Automotive (xEV) |
| |
|
