• Good performance and cost-effective
|
• Designed to meet IEEE 802.3u (100 Base-T)
|
• Expanded temperature range: -40 to +125 °C
|
• RoHS compliant* and halogen free**
|
• AEC-Q200 compliant
|
|
| CATALOG |
SM91071AL-E COUNTRY OF ORIGIN
|
SM91071AL-E PARAMETRIC INFO
|
SM91071AL-E PACKAGE INFO
|
SM91071AL-E MANUFACTURING INFO
|
SM91071AL-E PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
China
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Transformer Type |
10/100Base-T Transformer |
| Turns Ratio |
1:1 |
| Maximum DCR Primary Side (Ohm) |
1 |
| Maximum DCR Secondary Side (Ohm) |
1.4 |
| Maximum OCL Inductance (mH) |
0.35(Min) |
| Maximum Primary Leakage Inductance (uH) |
0.5 |
| Maximum Insertion Loss (dB) |
-1.1@1MHz to 100MHz |
| Minimum Return Loss (dB) |
-16@1MHz to 40MHz |
| High Potential |
1500Vrms/2250VDC |
| Minimum Crosstalk (dB) |
-35@60MHz to 100MHz |
| Minimum CMRR (dB) |
-30@60MHz to 100MHz |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 125 |
|
|
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Lead Style |
Gull Wing |
| Number of Terminals |
16 |
| Package Type |
SMD |
| Product Length (mm) |
12.8 |
| Product Depth (mm) |
9.5 |
| Product Height (mm) |
5.65 |
| Terminal Pitch (mm) |
1.27 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
245 to 250 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|

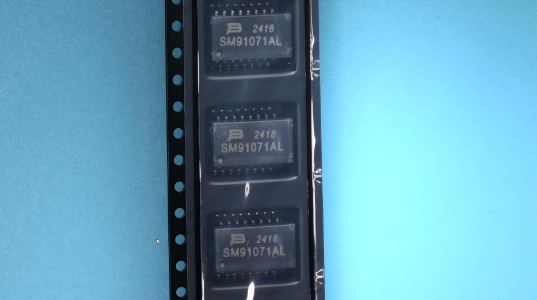

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
600 |
| Packaging Document |
Link to Datasheet |
|
