SMBJ15CA Bourns TVS DIODE 15V 24.4V SMB

label:

2025/07/28 16

SMBJ15CA Bourns TVS DIODE 15V 24.4V SMB

• RoHS compliant*

• Surface Mount SMB package

• Standoff Voltage: 5 to 495 volts

• Power Dissipation: 600 watts

CATALOG

SMBJ15CA COUNTRY OF ORIGIN

SMBJ15CA PARAMETRIC INFO

SMBJ15CA PACKAGE INFO

SMBJ15CA MANUFACTURING INFO

SMBJ15CA PACKAGING INFO

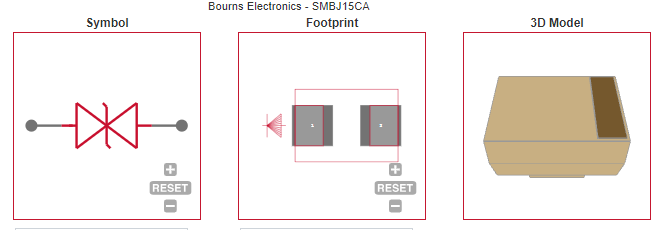

SMBJ15CA ECAD MODELS

SMBJ15CA APPLICATIONS

COUNTRY OF ORIGIN

Taiwan (Province of China)

PARAMETRIC INFO

Configuration	Single
Direction Type	Bi-Directional
Maximum Reverse Stand-Off Voltage (V)	15
Minimum Breakdown Voltage (V)	16.7
Maximum Clamping Voltage (V)	24.4
Maximum Reverse Leakage Current (uA)	1
Maximum Breakdown Voltage (V)	18.5
Number of Elements per Chip	1
Maximum Peak Pulse Current (A)	24.6
Test Current (mA)	1
Operating Junction Temperature (°C)	-55 to 150
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	150
Maximum Power Dissipation (mW)	5000
Peak Pulse Power Dissipation (W)	600(Min)
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150

Supplier Package	SMB
Basic Package Type	Lead-Frame SMT
Pin Count	2
Lead Shape	J-Lead
PCB	2
Tab	N/R
Pin Pitch (mm)	N/R
Package Length (mm)	4.57(Max)
Package Width (mm)	3.94(Max)
Package Height (mm)	2.2(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	5.59(Max)
Package Overall Width (mm)	3.94(Max)
Package Overall Height (mm)	2.4(Max)
Seated Plane Height (mm)	2.4(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	SMD Plastic Package
Package Family Name	DO
Jedec	DO-214AA
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	10
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Sn
Under Plating Material	N/A
Terminal Base Material	Cu Alloy

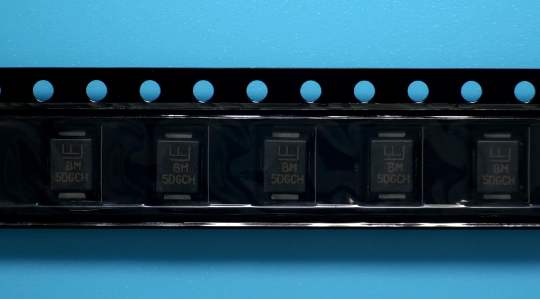

Packaging	Tape and Reel
Quantity Of Packaging	3000
Packaging Document	Link to Datasheet

• IEC 61000-4-2 ESD (Min. Level 4)

• IEC 61000-4-4 EFT

• IEC 61000-4-5 Surge
