| • RoHS compliant |
| • Halogen free
(refers to: Br≥900ppm, Cl≥900ppm, Br+Cl≥1500ppm) |
| • Broadest range of resettable devices available in the
industry |
| • Current ratings from 0.05 to 3.1A |
| • Voltage ratings from 6V computer and electronic
applications to 60V telecom applications |
| • Agency recognition: UL, CSA, TÜV |
| • Small footprint |
| • Fast time-to-trip |
| • Low resistance |
|
| CATALOG |
| SMD050F-2 COUNTRY OF ORIGIN |
| SMD050F-2 PARAMETRIC INFO |
| SMD050F-2 PACKAGE INFO |
| SMD050F-2 MANUFACTURING INFO |
| SMD050F-2 PACKAGING INFO |
| SMD050F-2 ECAD MODELS |
| SMD050F-2 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| United States of America |
|
| PARAMETRIC INFO |
| Trip Current (A) |
1 |
| Hold Current (A) |
0.5 |
| Maximum Voltage Rating |
60VDC |
| Maximum Current Rating (A) |
10 |
| Typical Power Dissipation (W) |
1.7(Max) |
| Minimum Initial Resistance (Ohm) |
0.35 |
| Maximum Post Trip Resistance (Ohm) |
1.4 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Trip Time (s) |
4@2.5A |
| Application |
Automotive|Battery|Computer|Game Machine|Industrial Control|Mobile Phone |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
40 |
| Size (mm) |
7.98 X 5.44 X 3.18 |
|
| |
| PACKAGE INFO |
| Package/Case |
2920 |
| Number of Terminals |
2 |
| Mounting |
Surface Mount |
| Product Weight (g) |
N/A |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
7.98(Max) |
| Product Depth (mm) |
5.44(Max) |
| Product Height (mm) |
3.18(Max) |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Termination Style |
Solder Pad |
|
| |
| MANUFACTURING INFO |
| MSL |
2a |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Brass |
| Number of Wave Cycles |
N/R |
|
| |

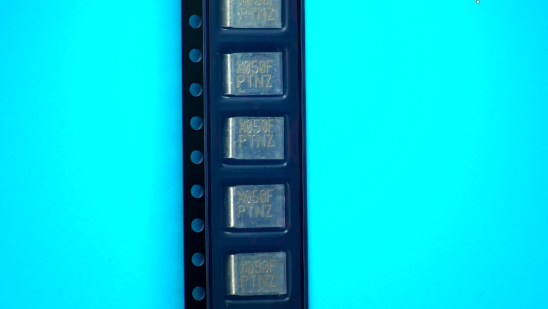

| PACKAGING INFO |
| Packaging Suffix |
2 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
| Reel Diameter (in) |
13(Max) |
| Reel Width (mm) |
16.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
16 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
| |
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Computer |
| • Portable electronics |
| • Multimedia |
| • Game machines |
| • Telephony and broadband |
| • Mobile phones |
| • Automotive |
| • Industrial controls
|
| • Battery |
|
