SMD185F-2 COUNTRY OF ORIGIN
|
SMD185F-2 PARAMETRIC INFO
|
SMD185F-2 PACKAGE INFO
|
SMD185F-2 MANUFACTURING INFO
|
SMD185F-2 PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
China
|
Japan
|
|
PARAMETRIC INFO
|
| Trip Current (A) |
3.6 |
| Hold Current (A) |
1.85 |
| Maximum Voltage Rating |
33VDC |
| Maximum Current Rating (A) |
40 |
| Maximum Initial Resistance (Ohm) |
0.165 |
| Typical Power Dissipation (W) |
1.5(Max) |
| Minimum Initial Resistance (Ohm) |
0.065 |
| Maximum Post Trip Resistance (Ohm) |
0.165 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Trip Time (s) |
5@8A |
| Application |
Automotive|Battery|Computer|Game Machine|Industrial Control|Mobile Phone |
| Minimum Operating Temperature (°C) |
-40 |
| Size (mm) |
9.4 X 6.71 X 3 |
|
|
PACKAGE INFO
|
| Package/Case |
N/A |
| Number of Terminals |
2 |
| Mounting |
Surface Mount |
| Product Weight (g) |
N/A |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
9.4(Max) |
| Product Depth (mm) |
6.71(Max) |
| Product Height (mm) |
3(Max) |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Termination Style |
Solder Pad |
|
|
MANUFACTURING INFO
|
| MSL |
2a |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Brass |
| Number of Wave Cycles |
N/R |
|
|

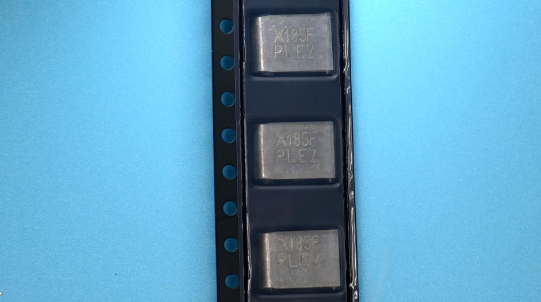

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1500 |
| Packaging Document |
Link to Datasheet |
|
|
