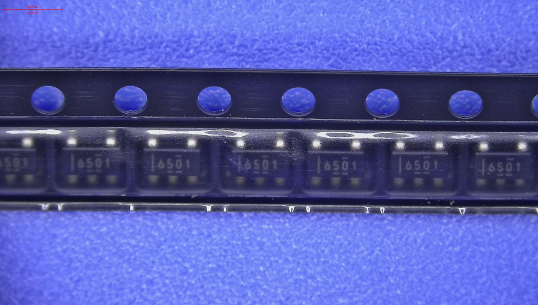

• Push-pull driver for small transformers
|
• Single 3.3-V or 5-V supply
|
• High primary-side current drive:– 5-V Supply: 350 mA (Max)– 3.3-V Supply: 150 mA (Max)
|
| • Low ripple on rectified output permits small output capacitors |
| • Small 5-Pin SOT-23 Package |
| |
| CATALOG |
| SN6501DBVT COUNTRY OF ORIGIN |
SN6501DBVT PARAMETRIC INFO
|
SN6501DBVT PACKAGE INFO
|
SN6501DBVT MANUFACTURING INFO
|
SN6501DBVT PACKAGING INFO
|
SN6501DBVT EACD MODELS
|
| SN6501DBVT APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| Malaysia |
| China |
| Philippines |
| |
PARAMETRIC INFO
|
| Category |
Transformer Drivers |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Supply Voltage (V) |
3 |
| Input Voltage (V) |
3 to 5.5 |
| Switching Frequency (kHz) |
620 |
| Output Current (A) |
0.35 |
| Maximum Supply Current (mA) |
0.7 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Power Dissipation (mW) |
250 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
| Packaging Document |
Link to Datasheet |
|
|

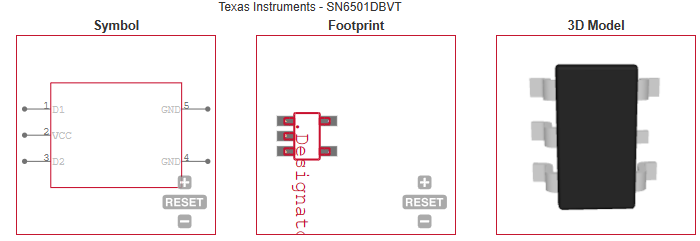

ECAD MODELS
|
|
| APPLICATIONS |
| • Isolated interface power supply for CAN, RS-485,RS-422, RS-232, SPI, I2C, Low-Power LAN |
| • Industrial automation |
| • Process control |
| • Medical equipment |
| |
