| • Push-pull driver for transformers |
| • Wide input voltage range: 2.25 V to 5.5 V |
| • High output drive: 1 A at 5 V supply |
| • Low RON 0.25 Ω max at 4.5 V supply |
| • Ultra-low EMI
|
| • Spread spectrum clocking |
| • Precision internal oscillator options: 160 kHz
(SN6505A) and 420 kHz (SN6505B)
|
| • Synchronization of multiple devices with external
clock input |
| • Slew-rate control |
| • 1.7 A Current-limit |
| • Low shutdown current: <1 μA |
| • Thermal shutdown |
| • Wide temperature range: –55°C to 125°C |
| • Small 6-Pin SOT23 (DBV) package |
| • Soft-start to reduce In-rush current |
|
| CATALOG |
| SN6505BDBVR COUNTRY OF ORIGIN |
| SN6505BDBVR PARAMETRIC INFO |
| SN6505BDBVR PACKAGE INFO |
| SN6505BDBVR MANUFACTURING INFO |
| SN6505BDBVR PACKAGING INFO |
| SN6505BDBVR ECAD MODELS |
| SN6505BDBVR FUNCTIONAL BLOCK DIAGRAM |
| SN6505BDBVR APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| China |
| Philippines |
| United States of America |
|
| PARAMETRIC INFO |
| Category |
Transformer Drivers |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
424(Typ) |
| Input Voltage (V) |
2.25 to 5.5 |
| Minimum Operating Supply Voltage (V) |
2.25 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
1.56(Typ) |
| Output Current (A) |
1 |
| Minimum Storage Temperature (°C) |
-65 |
| Process Technology |
MOSFET |
| Maximum Storage Temperature (°C) |
150 |
|
|
| Package Info |
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AB |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
4 |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

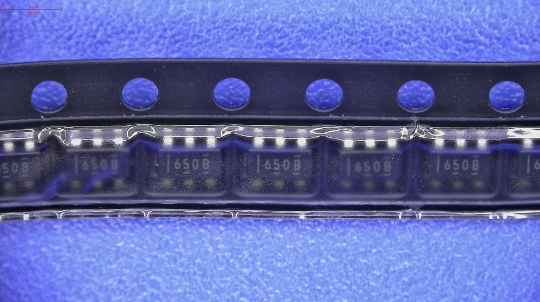

| PACKAGING INFO |
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
9 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
|
|

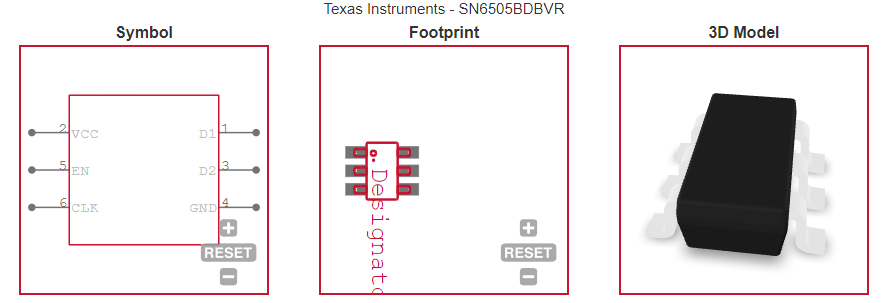

| ECAD MODELS |
 |
|

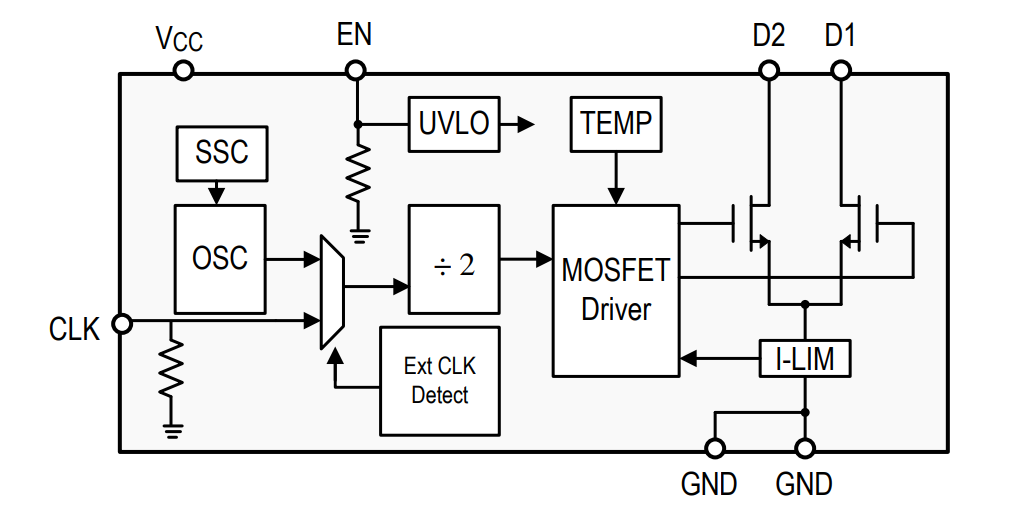

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS
|
| • Isolated power supply for CAN, RS-485, RS-422,
RS-232, SPI, I2C, low-power LAN |
| • Low-noise isolated USB supplies |
| • Process control |
| • Telecom supplies |
| • Radio supplies |
| • Distributed supplies |
| • Medical instruments |
| • Precision instruments |
| • Low-noise filament supplies |
| |
| |
