• Control inputs VIH/VIL levels are referenced to VCCA voltage
|
• Fully configurable dual-rail design allows each port to operate over the full 1.2V to 3.6V power-supply range
|
• I/Os Are 4.6V tolerant
|
• Ioff supports partial power-down-mode operation
|
• Maximum data rates:– 380Mbps (1.8V to 3.3V translation)– 200Mbps (< 1.8V to 3.3V translation)– 200Mbps (translate to 2.5V or 1.8V)– 150Mbps (translate to 1.5V)– 100Mbps (translate to 1.2V)
|
• Latch-up performance exceeds 100mA per JESD 78, Class II
|
• ESD protection exceeds JESD 22:– 8000V Human-Body Model (A114-A)– 150V Machine Model (A115-A)– 1000V Charged-Device Model (C101)
|
|
CATALOG |
SN74AVC4T245PWR COUNTRY OF ORIGIN
|
SN74AVC4T245PWR PARAMETRIC INFO
|
SN74AVC4T245PWR PACKAGE INFO
|
SN74AVC4T245PWR MANUFACTURING INFO
|
SN74AVC4T245PWR PACKAGING INFO
|
SN74AVC4T245PWR ECAD MODELS
|
SN74AVC4T245PWR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Taiwan (Province of China)
|
Malaysia
|
|
PARAMETRIC INFO
|
Number of Channels |
4 |
Channel Type |
Bidirectional |
Logic Family |
AVC |
Process Technology |
CMOS |
Logic Function |
Voltage Level Translator |
Output Type |
3-State |
Minimum High Level Input Voltage (V) |
1.6 |
Minimum Latch-Up Current (mA) |
100 |
Minimum Operating Temperature (°C) |
-40 |
Maximum Operating Temperature (°C) |
85 |
Supplier Temperature Grade |
Commercial |
Minimum Storage Temperature (°C) |
-65 |
Maximum Storage Temperature (°C) |
150 |
Minimum Operating Supply Voltage (V) |
1.2 |
Maximum Operating Supply Voltage (V) |
3.6 |
Typical Operating Supply Voltage (V) |
1.8|2.5|3.3 |
Maximum High Level Output Current (mA) |
-12 |
Maximum Low Level Output Current (mA) |
12 |
Maximum Quiescent Current (mA) |
0.016 |
Maximum Propagation Delay Time @ Maximum CL (ns) |
6.3@1.4V to 1.6V |
Absolute Propagation Delay Time (ns) |
10.3 |
|
|
PACKAGE INFO
|
Supplier Package |
TSSOP |
Basic Package Type |
Lead-Frame SMT |
Pin Count |
16 |
Lead Shape |
Gull-wing |
PCB |
16 |
Tab |
N/R |
Pin Pitch (mm) |
0.65 |
Package Length (mm) |
5.1(Max) |
Package Width (mm) |
4.5(Max) |
Package Height (mm) |
1.05(Max) |
Package Diameter (mm) |
N/R |
Package Overall Length (mm) |
5.1(Max) |
Package Overall Width (mm) |
6.6(Max) |
Package Overall Height (mm) |
1.2(Max) |
Seated Plane Height (mm) |
1.2(Max) |
Mounting |
Surface Mount |
Package Weight (g) |
N/A |
Package Material |
Plastic |
Package Description |
Thin Shrink Small Outline Package |
Package Family Name |
SO |
Jedec |
MO-153AB |
Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
MSL |
1 |
Maximum Reflow Temperature (°C) |
260 |
Reflow Solder Time (Sec) |
30 |
Number of Reflow Cycle |
3 |
Standard |
J-STD-020D |
Reflow Temp. Source |
Link to Datasheet |
Maximum Wave Temperature (°C) |
N/R |
Wave Solder Time (Sec) |
N/R |
Lead Finish(Plating) |
Au |
Under Plating Material |
Pd over Ni |
Terminal Base Material |
Cu Alloy |
Number of Wave Cycles |
N/R |
|
|

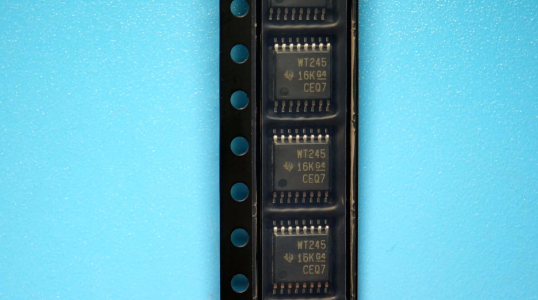

PACKAGING INFO
|
Packaging Suffix |
R |
Packaging |
Tape and Reel |
Quantity Of Packaging |
2000 |
Reel Diameter (in) |
13 |
Reel Width (mm) |
12.4 |
Tape Pitch (mm) |
8 |
Tape Width (mm) |
12 |
Component Orientation |
Q1 |
Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS |
|
|
APPLICATIONS |
• Personal electronics |
• Industrial |
• Enterprise |
• Telecom |
|
