• 20Mbps RS-485 and 1Mbps RS-232 Data Rates
|
• Pin-Selectable 250kbps Slew Limiting
|
• Single Supply Operation from +3V to +5.5V
|
• 1.65V to 5.5V Logic Interface VL pin
|
• 2 Drivers, 2 Receivers RS-232/V.28
|
• RS-485/422 Enhanced Receiver Fail-safe for open,shorted, or terminated but idle inputs
|
|
| CATALOG |
SP330EEY-L/TR COUNTRY OF ORIGIN
|
SP330EEY-L/TR PARAMETRIC INFO
|
SP330EEY-L/TR PACKAGE INFO
|
SP330EEY-L/TR MANUFACTURING INFO
|
SP330EEY-L/TR PACKAGING INFO
|

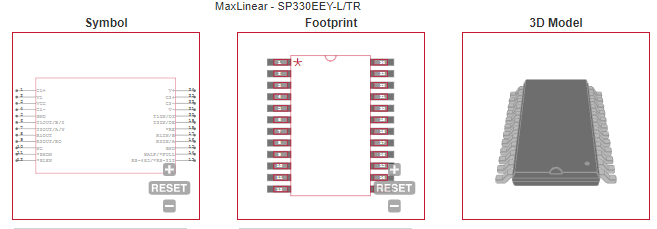

SP330EEY-L/TR ECAD MODELS
|
SP330EEY-L/TR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Function |
Line Transceiver |
| Number of Transceivers |
1 |
| Number of Transmitters |
1@RS-422|1@RS-485|2@RS-232 |
| Number of Receivers |
1@RS-422|1@RS-485|2@RS-232 |
| Data Transmission Topology |
Point-to-Point|Multidrop|Multipoint |
| Transmitter Signal Type |
Single-Ended|Differential |
| Receiver Signal Type |
Single-Ended|Differential |
| Transmitter Communication Type |
RS-232|RS-422|RS-485 |
| Receiver Communication Type |
RS-232|RS-422|RS-485 |
| Interface Standards |
EIA/TIA-485 |
| Number of Transmitter Enables |
1 |
| Number of Receiver Enables |
1 |
| Number of Drivers per Line |
1@RS-232|1@RS-422|256@RS-485 |
| Number of Receivers per Line |
1@RS-232|10@RS-422|256@RS-485 |
| Data Rate |
20Mbps(Min) |
| Driving Mode |
3-State |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Power Supply Type |
Single |
| Typical Single Supply Voltage (V) |
3.3|5 |
| Minimum Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
4.5 |
|
|
PACKAGE INFO
|
| Supplier Package |
TSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
24 |
| Lead Shape |
Gull-wing |
| PCB |
24 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
7.8 |
| Package Width (mm) |
4.4 |
| Package Height (mm) |
1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
7.8 |
| Package Overall Width (mm) |
6.4 |
| Package Overall Height (mm) |
1.2(Max) |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Thin Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-153AD |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

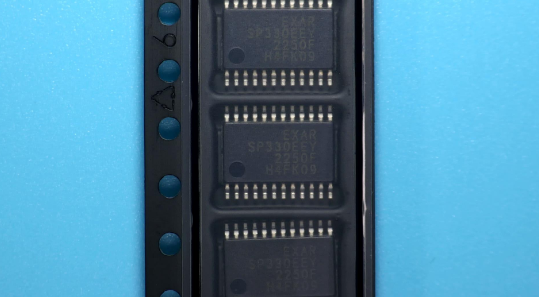

PACKAGING INFO
|
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • Software Programmable Serial Ports(RS-232, RS-422, RS-485) |
| • Industrial and Single Board Computers |
| • Industrial and Process Control Equipment |
| • Point-Of-Sale Equipment |
| • HVAC Controls and Networking Equipment |
| • Building Security and Automation |
| |
