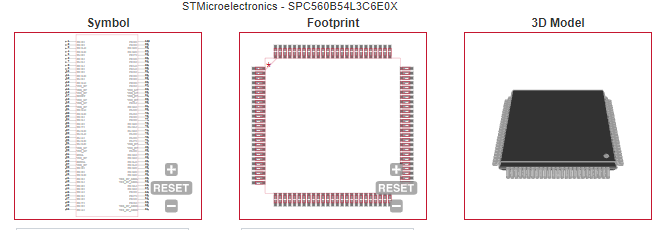

SPC560B54L3C6E0X STMicroelectronics IC MCU 32BIT 768KB FLASH 100LQFP

2025/08/25 0

CATALOG

Taiwan (Province of China)

Family Name	MPC56xx
Data Bus Width (bit)	32
Device Core	e200z0h
Instruction Set Architecture	RISC
Maximum Clock Rate (MHz)	64
Program Memory Type	Flash
Program Memory Size	768KB
RAM Size	64KB
Maximum CPU Frequency (MHz)	64
Data Memory Size	64KB
GPIO	123
Number of Timers	2
ADC Channels	19/15/19/5
ADC Resolution (bit)	10/10/12/12
Core Architecture	e200
Number of ADCs	4
Watchdog	1
Special Features	CAN Controller
Interface Type	CAN/I2C/SCI/SPI
Programmability	Yes
SPI	3
I2C	1
I2S	0
UART	0
USART	0
CAN	6
USB	0
Ethernet	0
Minimum Operating Supply Voltage (V)	3\|4.5
Typical Operating Supply Voltage (V)	3.3\|5
Maximum Operating Supply Voltage (V)	3.6\|5.5
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Temperature Flag	Opr
Supplier Temperature Grade	Industrial
Operating Supply Voltage (V)	3.3\|5
Maximum Storage Temperature (°C)	150
Minimum Storage Temperature (°C)	-55

Supplier Package	LQFP
Basic Package Type	Lead-Frame SMT
Pin Count	100
Lead Shape	Gull-wing
PCB	100
Tab	N/R
Pin Pitch (mm)	0.5
Package Length (mm)	14
Package Width (mm)	14
Package Height (mm)	1.4
Package Diameter (mm)	N/R
Package Overall Length (mm)	16
Package Overall Width (mm)	16
Package Overall Height (mm)	1.6(Max)
Seated Plane Height (mm)	1.6(Max)
Mounting	Surface Mount
Terminal Width (mm)	0.22
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Low Profile Quad Flat Package
Package Family Name	QFP
Jedec	MS-026BED
Package Outline	Link to Datasheet
