• Magnetic shield type wound inductor for power circuits using a metallic magnetic material
|
• Low-profile product.
|
• Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness
|
• Low inductance variance in high-temperature environments with good DC superimposition characteristics.
|
• Metallic magnetic material is used, and the structure has an integrated molded coil, so hum noise is lower than with core adhesive coils.
|
• Operating temperature range: –40 to +125 °C (including self-temperature rise)
|
|
| CATALOG |
SPM4012T-4R7M-LR COUNTRY OF ORIGIN
|
SPM4012T-4R7M-LR PARAMETRIC INFO
|
SPM4012T-4R7M-LR PACKAGE INFO
|
SPM4012T-4R7M-LR MANUFACTURING INFO
|
SPM4012T-4R7M-LR PACKAGING INFO
|
SPM4012T-4R7M-LR APPLICATION
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Metal |
| Inductance (H) |
4.7u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
100K |
| Maximum DC Current (A) |
1.7(Typ) |
| Typical Temperature Rise (°C) |
40 |
| Maximum Saturation Current (A) |
3.3(Typ) |
| Maximum DC Resistance (Ohm) |
0.1967 |
| Inductance Decrease Percentage @ Isat (%) |
30 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 125 |
|
|
PACKAGE INFO
|
| Case Size |
N/A |
| Maximum Product Length (mm) |
4.6 |
| Maximum Product Depth (mm) |
4.3 |
| Maximum Product Height (mm) |
1.2 |
| Maximum Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
0.0941 |
| Terminal Pitch (mm) |
N/R |
| Mounting |
Surface Mount |
| Product Diameter (mm) |
N/R |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|

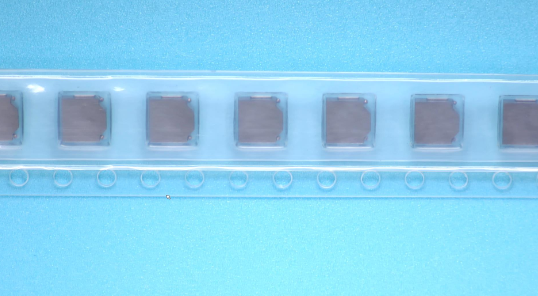

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATION
|
• Tablet terminals, note PCs, HDDs, servers, VRMs, compact power supply modules, other
|
| • Application guides: Smart phones/tablets |
|
