• Beam Angle: 120˚
|
• Precondition : JEDEC Level 2a
|
• Dimension : 2.3 x 2.3 x 0.7 mm
|
• ESD withstand Voltage : up to ± 5KV [HBM]
|
• Reliability Test : LM-80 qualified
|
|
| CATALOG |
SPMWHT221MD5WAQ0S0 PARAMETRIC INFO
|
SPMWHT221MD5WAQ0S0 PACKAGE INFO
|
SPMWHT221MD5WAQ0S0 MANUFACTURING INFO
|
SPMWHT221MD5WAQ0S0 PACKAGING INFO
|
SPMWHT221MD5WAQ0S0 APPLICATIONS
|
|
PARAMETRIC INFO
|
| Type |
Uni-Color |
| Color |
White |
| Category |
Chip LED |
| Mounting Orientation |
Top Mount |
| Lens Shape Type |
Rectangular |
| LED Material |
GaN |
| Lead Standoff |
No |
| High Brightness |
Yes |
| Intensity |
7700mcd |
| Test Current (mA) |
65 |
| Supplier Color |
White |
| Number of LEDs |
1 |
| Viewing Angle (°) |
120 |
| Luminous Flux |
31.16lm(Max) |
| High Power |
Yes |
| Maximum Forward Voltage (V) |
3.2 |
| Maximum Forward Current (mA) |
150 |
| Reverse Voltage (V) |
1.2 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Forward Voltage Range (V) |
3.3 to 5 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
100 |
|
|
PACKAGE INFO
|
| Supplier Package |
SMD |
| Pin Count |
2 |
| PCB |
2 |
| Tab |
N/R |
| Pin Pitch (mm) |
N/A |
| Package Length (mm) |
2.3 |
| Package Width (mm) |
2.3 |
| Package Height (mm) |
0.7 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.7 |
| Mounting |
Surface Mount |
| Package Material |
N/A |
| Package Description |
Surface Mount Device |
| Package Family Name |
SMD |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|

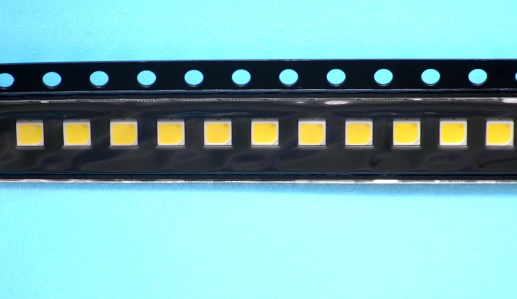

PACKAGING INFO
|
|
|
|
APPLICATIONS
|
• INDOOR LIGHTING : Ambient Light, LED tube, Down light, LED bulb and Ceiling Light
|
|
