• Low Noise: 40μV Possible
|
• High Accuracy: 1%
|
• Reverse Battery Protection
|
| • Low Dropout: 340mV at Full Load |
| • Low Quiescent Current: 90μA |
| • Zero Off-Mode Current |
| • Fixed & Adjustable Output Voltages:− 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V & 5.0V Fixed Output Voltages− ≥1.235V Adjustable Output Voltages |
| • Available in RoHS Compliant, Lead Free Packages:− 5-pin SOT-23, 8-pin SOIC and 8-pin DFN |
|
| CATALOG |
| SPX3819M5-L-3-3/TR COUNTRY OF ORIGIN |
SPX3819M5-L-3-3/TR PARAMETRIC INFO
|
SPX3819M5-L-3-3/TR PACKAGE INFO
|
SPX3819M5-L-3-3/TR MANUFACTURING INFO
|
SPX3819M5-L-3-3/TR PACKAGING INFO
|
SPX3819M5-L-3-3/TR EACD MODELS
|
| SPX3819M5-L-3-3/TR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Malaysia |
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
191°C/W(Typ) |
| Polarity |
Positive |
| Special Features |
Current Limit|Reverse Battery Protection|Thermal Shutdown Protection |
| Load Regulation |
0.4% |
| Line Regulation |
0.1%/V |
| Maximum Dropout Voltage @ Current (V) |
0.06@100uA|0.175@50mA|0.35@150mA|0.55@500mA |
| Minimum Input Voltage (V) |
2.5 |
| Maximum Input Voltage (V) |
16 |
| Output Voltage (V) |
3.3 |
| Typical Quiescent Current (mA) |
0.09 |
| Typical Dropout Voltage @ Current (V) |
0.01@100uA|0.125@50mA|0.18@150mA|0.34@500mA |
| Accuracy (%) |
±1 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.15 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
5 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

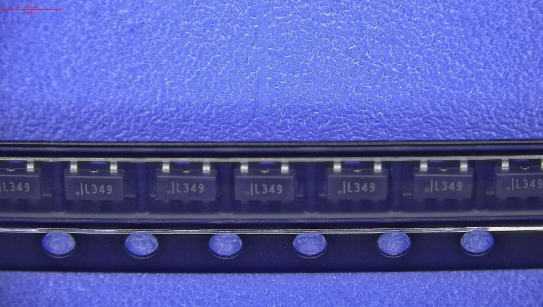

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
|

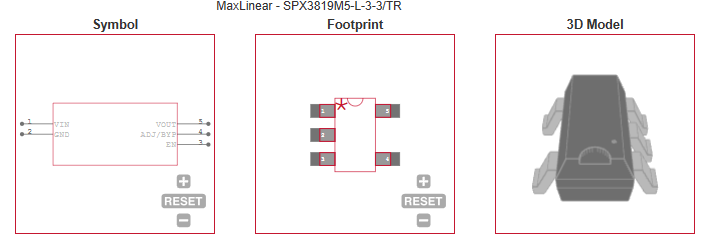

ECAD MODELS
|
|
