• Shielded construction – low radiation
|
• Bifilar wound
|
• High temperature
|
• AEC-Q200 compliant
|
|
| CATALOG |
SRF4530A-510Y COUNTRY OF ORIGIN
|
SRF4530A-510Y PARAMETRIC INFO
|
SRF4530A-510Y PACKAGE INFO
|
SRF4530A-510Y MANUFACTURING INFO
|
SRF4530A-510Y PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Data Line/Signal Line |
| Number of Lines |
2 |
| Configuration |
Dual |
| Inductance (H) |
51u |
| Impedance (Ohm) |
3.5k@10MHz |
| Leakage Inductance (H) |
250n |
| Test Frequency (Hz) |
100k |
| Maximum DC Current (A) |
0.23 |
| Maximum DC Resistance (Ohm) |
1 |
| Minimum Insulation Resistance (Ohm) |
10M |
| Voltage Rating |
50VDC |
| Maximum Operating Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Inductance Tolerance |
-30% to 50% |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Maximum Product Length (mm) |
4.7 |
| Maximum Product Depth (mm) |
3.4 |
| Maximum Product Height (mm) |
3 |
| Case Size |
1812 |
| Product Weight (g) |
0.15 |
|
|
MANUFACTURING INFO
|
|
|
PACKAGING INFO
|

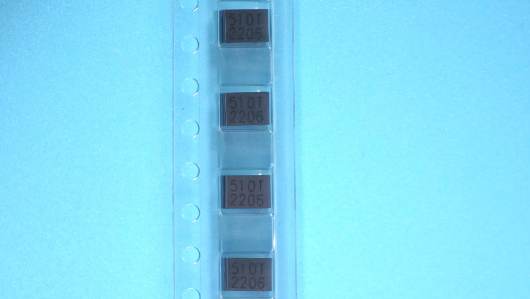

| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
