• Semi-shielded construction
|
• High rated current
|
• Component height 4.5 mm
|
• Inductance range: 1 to 220 µH
|
• Rated current up to 4.2 A
|
• RoHS compliant* and halogen free**
|
|
| CATALOG |

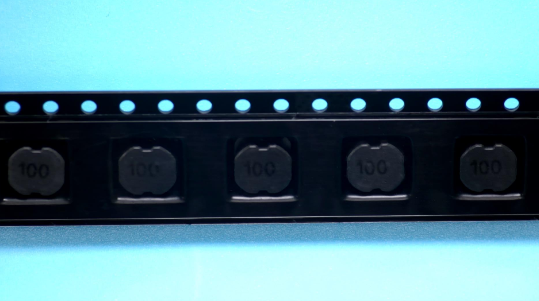

SRN6045-100M COUNTRY OF ORIGIN
|
SRN6045-100M PARAMETRIC INFO
|
SRN6045-100M PACKAGE INFO
|
SRN6045-100M MANUFACTURING INFO
|
SRN6045-100M PACKAGING INFO
|
SRN6045-100M ECAD MODELS
|
SRN6045-100M APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Semi-Shielded |
| Core Material |
Ferrite |
| Inductance (H) |
10u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
100K |
| Maximum DC Current (A) |
2.5 |
| Typical Temperature Rise (°C) |
40 |
| Maximum Saturation Current (A) |
3 |
| Inductance Decrease Percentage @ Isat (%) |
30 |
| Maximum DC Resistance (Ohm) |
0.0586 |
| Minimum Quality Factor |
17 |
| Quality Test Frequency (Hz) |
2.52M |
| Minimum Self Resonant Frequency (Hz) |
15M(Typ) |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 125 |
| Polarity |
No |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Case Size |
2424 |
| Maximum Product Length (mm) |
6.2 |
| Maximum Product Depth (mm) |
6.2 |
| Maximum Product Height (mm) |
4.5 |
| Maximum Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
| Package Shape |
N/A |
| Terminal Pitch (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Type |
SMD |
| Product Length (mm) |
6 |
| Product Depth (mm) |
6 |
| Product Height (mm) |
N/A |
| Product Diameter (mm) |
N/R |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
30 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
SnAgCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
|
|
| ECAD MODELS |
|
|
| APPLICATIONS |
| • DC/DC converters |
| • Notebook computers |
| • Digital video cameras |
| • HDDs |
| • Cell phones |
| • Televisions, LCD displays |
| |
