• Semi-shielded construction
|
• Inductance range: 1 to 470 µH
|
• Rated current up to 8 A
|
• AEC-Q200 compliant
|
• RoHS compliant* and halogen free**
|
|
| CATALOG |

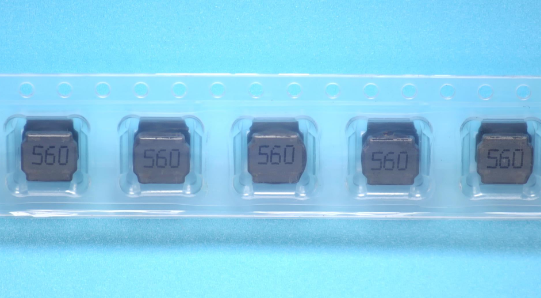

SRN6045TA-560M COUNTRY OF ORIGIN
|
SRN6045TA-560M PARAMETRIC INFO
|
SRN6045TA-560M PACKAGE INFO
|
SRN6045TA-560M MANUFACTURING INFO
|
SRN6045TA-560M PACKAGING INFO
|

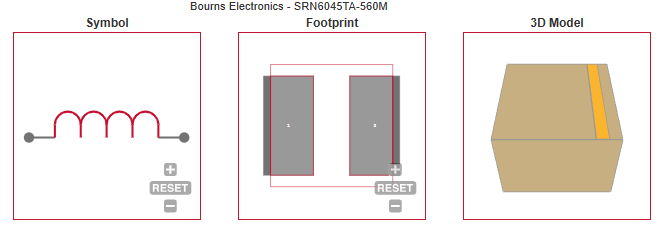

SRN6045TA-560M ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Semi-Shielded |
| Core Material |
Ferrite |
| Inductance (H) |
56u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
1M |
| Maximum DC Current (A) |
1.4(Typ) |
| Typical Temperature Rise (°C) |
40 |
| Maximum Saturation Current (A) |
1.8(Typ) |
| Maximum DC Resistance (Ohm) |
0.23(Typ) |
| Inductance Decrease Percentage @ Isat (%) |
30 |
| Minimum Quality Factor |
15 |
| Quality Test Frequency (Hz) |
1M |
| Minimum Self Resonant Frequency (Hz) |
11M(Typ) |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Operating Temperature (°C) |
-55 to 125 |
|
|
PACKAGE INFO
|
| Case Size |
2424 |
| Maximum Product Length (mm) |
6.3 |
| Maximum Product Depth (mm) |
6.3 |
| Maximum Product Height (mm) |
4.5 |
| Maximum Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
| Terminal Pitch (mm) |
N/R |
| Mounting |
Surface Mount |
|
|
MANUFACTURING INFO
|
|
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
13 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
