• Shielded construction
|
• Carbonyl powder core
|
• High saturation current
|
• Inductance range: 0.15 to 47 µH
|
|
| CATALOG |
SRP1265A-100M COUNTRY OF ORIGIN
|
SRP1265A-100M PARAMETRIC INFO
|
SRP1265A-100M PACKAGE INFO
|
SRP1265A-100M MANUFACTURING INFO
|
SRP1265A-100M PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
China
|
Taiwan (Province of China)
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Carbonyl Powder |
| Inductance (H) |
10u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
100K |
| Maximum DC Current (A) |
10 |
| Maximum Saturation Current (A) |
15.5 |
| Maximum DC Resistance (Ohm) |
0.0165 |
| Minimum Quality Factor |
20 |
| Quality Test Frequency (Hz) |
100K |
| Minimum Self Resonant Frequency (Hz) |
10M(Typ) |
| Maximum Operating Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Operating Temperature (°C) |
-55 to 150 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Case Size |
N/A |
| Maximum Product Length (mm) |
14 |
| Maximum Product Depth (mm) |
12.8 |
| Maximum Product Height (mm) |
6.5 |
| Maximum Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
| Terminal Pitch (mm) |
N/R |
| Mounting |
Surface Mount |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu |
|
|

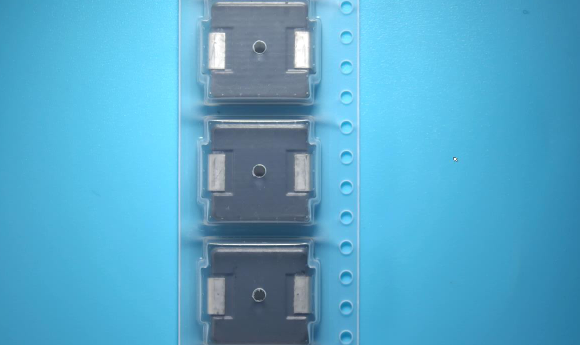

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Packaging Document |
Link to Datasheet |
|
| |
