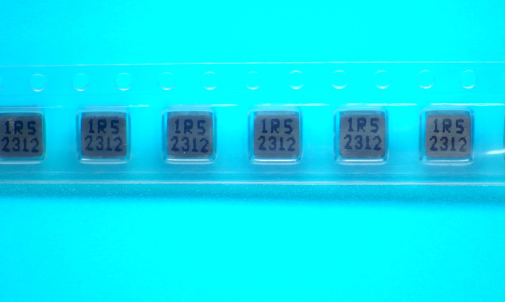

• Shielded construction
|
• Metal alloy powder core
|
• High saturation current
|
• Flat wire
|
• AEC-Q200 compliant
|
• RoHS compliant* and halogen free**
|
|
| CATALOG |
| SRP4020FA-1R5M COUNTRY OF ORIGIN |
SRP4020FA-1R5M PARAMETRIC INFO
|
SRP4020FA-1R5M PACKAGE INFO
|
SRP4020FA-1R5M MANUFACTURING INFO
|
SRP4020FA-1R5M PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Metal Alloy Powder |
| Inductance (H) |
1.5u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
100K |
| Maximum DC Current (A) |
9.1(Typ) |
| Typical Temperature Rise (°C) |
40 |
| Maximum Saturation Current (A) |
7.5(Typ) |
| Inductance Decrease Percentage @ Isat (%) |
30 |
| Maximum DC Resistance (Ohm) |
0.0158 |
| Minimum Quality Factor |
20 |
| Minimum Self Resonant Frequency (Hz) |
45M(Typ) |
| Maximum Operating Temperature (°C) |
155 |
| Minimum Operating Temperature (°C) |
-55 |
| Operating Temperature (°C) |
-55 to 155 |
| Maximum Storage Temperature (°C) |
155 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Case Size |
N/A |
| Product Length (mm) |
4.3 |
| Product Depth (mm) |
4.3 |
| Product Height (mm) |
2.1 |
| Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
| Mounting |
Surface Mount |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|
