• Shielded construction
|
• Unit height of 3.2 mm
|
• Inductance range: 0.1 to 10 μH
|
• Current up to 32.5 A
|
• RoHS compliant*
|
|
| CATALOG |

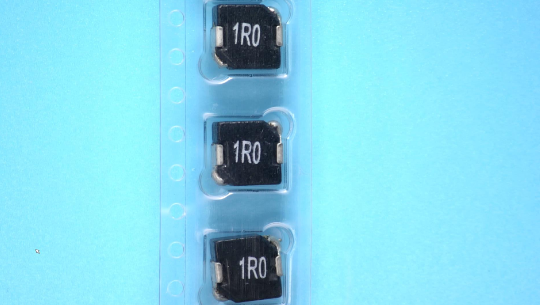

SRP7030-1R0M COUNTRY OF ORIGIN
|
SRP7030-1R0M PARAMETRIC INFO
|
SRP7030-1R0M PACKAGE INFO
|
SRP7030-1R0M MANUFACTURING INFO
|
SRP7030-1R0M PACKAGING INFO
|

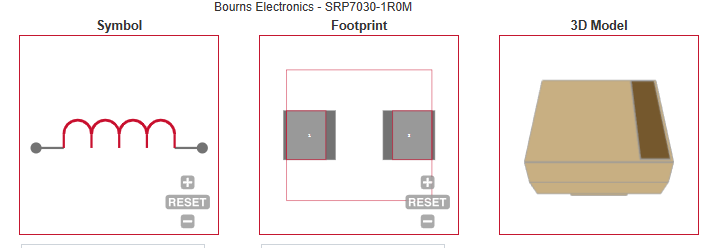

SRP7030-1R0M ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Iron |
| Inductance (H) |
1u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
100K |
| Maximum DC Current (A) |
11 |
| Maximum Saturation Current (A) |
15 |
| Maximum DC Resistance (Ohm) |
0.01 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 125 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Case Size |
N/A |
| Maximum Product Length (mm) |
7.8 |
| Maximum Product Depth (mm) |
7 |
| Maximum Product Height (mm) |
3.2 |
| Maximum Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
| Mounting |
Surface Mount |
|
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
|
| PACKAGING INFO |
|
|
|
| ECAD MODELS |
 |
| |
