• Available in E6 series
|
• Low unit height of 4.8 mm
|
• High current
|
• RoHS compliant*
|
|
| CATALOG |
SRR0604-4R7ML COUNTRY OF ORIGIN
|
SRR0604-4R7ML PARAMETRIC INFO
|
SRR0604-4R7ML PACKAGE INFO
|
SRR0604-4R7ML MANUFACTURING INFO
|
SRR0604-4R7ML PACKAGING INFO
|
SRR0604-4R7ML ECAD MODELS
|
SRR0604-4R7ML APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Ferrite |
| Inductance (H) |
4.7u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
1K |
| Maximum DC Current (A) |
2 |
| Maximum Saturation Current (A) |
2.55(Typ) |
| Maximum DC Resistance (Ohm) |
0.06 |
| Minimum Quality Factor |
10 |
| Quality Test Frequency (Hz) |
7.96M |
| Minimum Self Resonant Frequency (Hz) |
50M |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 125 |
|
|
PACKAGE INFO
|
| Case Size |
N/A |
| Maximum Product Length (mm) |
6.8 |
| Maximum Product Depth (mm) |
6.8 |
| Maximum Product Height (mm) |
4.9 |
| Maximum Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
| Terminal Pitch (mm) |
N/R |
| Mounting |
Surface Mount |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
5 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|

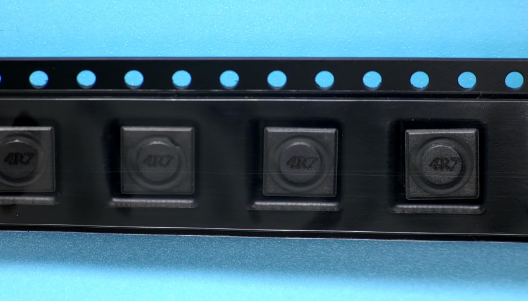

PACKAGING INFO
|
|
|
|

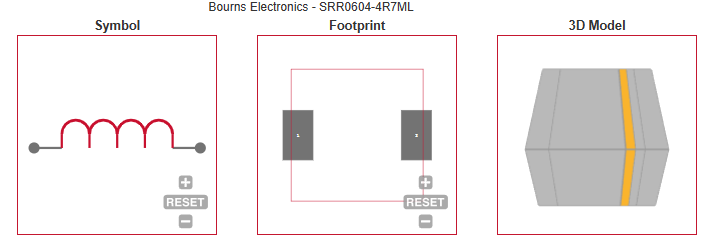

ECAD MODELS
|
|
|
APPLICATIONS
|
| • Input/output of DC/DC converters |
| |
