| ■ Available in E12 values |
| ■ Inductance range as low as 1.1 µH |
| ■ Current rating to 10.2 amps |
| ■ RoHS compliant* |
|
| CATALOG |
| SRR1280-221K COUNTRY OF ORIGIN |
| SRR1280-221K PARAMETRIC INFO |
| SRR1280-221K PACKAGE INFO |
| SRR1280-221K MANUFACTURING INFO |
| SRR1280-221K PACKAGING INFO |

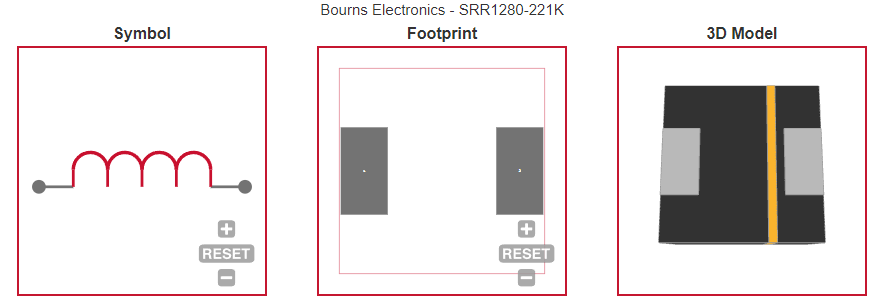

| SRR1280-221K ECAD MODELS |
| SRR1280-221K APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Malaysia |
| Taiwan (Province of China) |
|
| PARAMETRIC INFO |
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Ferrite |
| Inductance (H) |
220u |
| Tolerance |
10% |
| Inductance Test Frequency (Hz) |
1K |
| Maximum DC Current (A) |
1.6 |
| Typical Temperature Rise (°C) |
40 |
| Maximum Saturation Current (A) |
1.7(Typ) |
| Inductance Decrease Percentage @ Isat (%) |
25 |
| Maximum DC Resistance (Ohm) |
0.4 |
| Minimum Quality Factor |
24(Typ) |
| Quality Test Frequency (Hz) |
796K |
| Minimum Self Resonant Frequency (Hz) |
3.4M(Typ) |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 125 |
| Polarity |
No |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-40 |
|
| PACKAGE INFO |
| Case Size |
N/A |
| Product Length (mm) |
12.8 |
| Product Depth (mm) |
12.8 |
| Product Height (mm) |
8 |
| Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
| Package Shape |
Square |
| Terminal Pitch (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Type |
SMD |
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
|

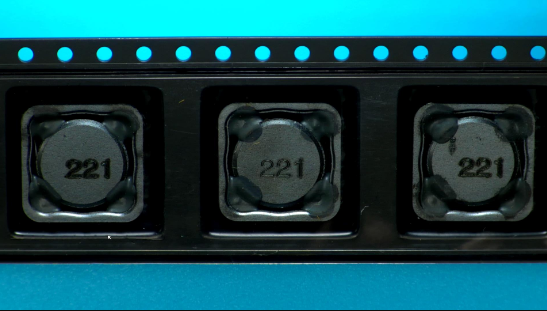

| PACKAGING INFO |
|
| ECAD MODELS |
 |
|
| APPLICATIONS |
| ■ Input/output of DC/DC converters |
■ Power supplies for:
- Portable communication equipment
- Camcorders
- LCD televisions |
|
