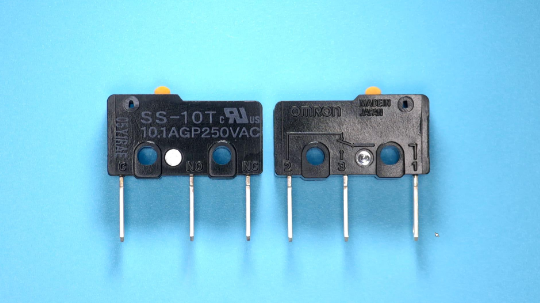

PARAMETER INFORMATION
|
| Pole Throw Configuration |
SPDT |
| Switch Configuration |
NO/NC |
| Maximum Current Rating (A) |
10.1@250VAC |
| Maximum AC Voltage Rating (V) |
250 |
| Electrical Life (Cycles) |
50000 |
| Mechanical Life (Cycles) |
10000000 |
| Actuator Style |
Pin Plunger |
| Operating Force (N) |
1.47 |
| Release Force (N) |
0.25 |
| Contact Material |
Silver Alloy |
| IP Rating |
IP40 |
| Dielectric Strength |
1000VAC |
| Minimum Insulation Resistance (MOhm) |
100 |
| Maximum Movement Differential (mm) |
0.12 |
| Minimum Over-Travel (mm) |
0.4 |
| Maximum Pre-Travel (mm) |
0.6 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-25 |
| Body Length (mm) |
19.8 |
| Body Depth (mm) |
6.4 |
| Body Height (mm) |
10.6 |
| Operating Temperature (°C) |
-25 to 85 |
|
|
PACKAGING INFORMATION
|
| Termination Style |
Quick Connect |
| Install |
Screw Mount |
| Body Orientation |
Straight |
| Product Length (mm) |
19.8 |
| Product Depth (mm) |
6.4 |
| Product Height (mm) |
19.6 |
| Product Weight (g) |
1.6 |
|
|
MANUFACTURING INFORMATION
|
| MSL |
N/R |
| Maximum reflow temperature (°C) |
N/R |
| Reflow time (seconds) |
N/R |
| Maximum wave soldering temperature (°C) |
not applicable |
| Wave soldering time (seconds) |
not applicable |
| Wave soldering temperature source |
Link to data sheet |
| Lead Finish(Plating) |
Ag |
| Plating materials |
not applicable |
| Terminal base material |
not applicable |
|
|

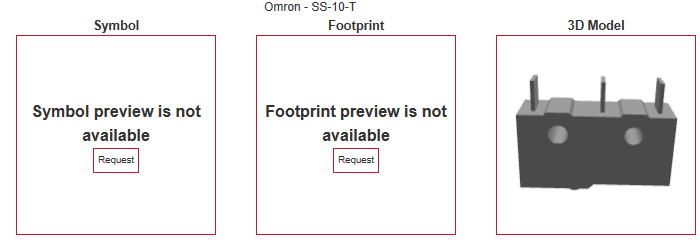

| ECAD MODELS |
|
|
